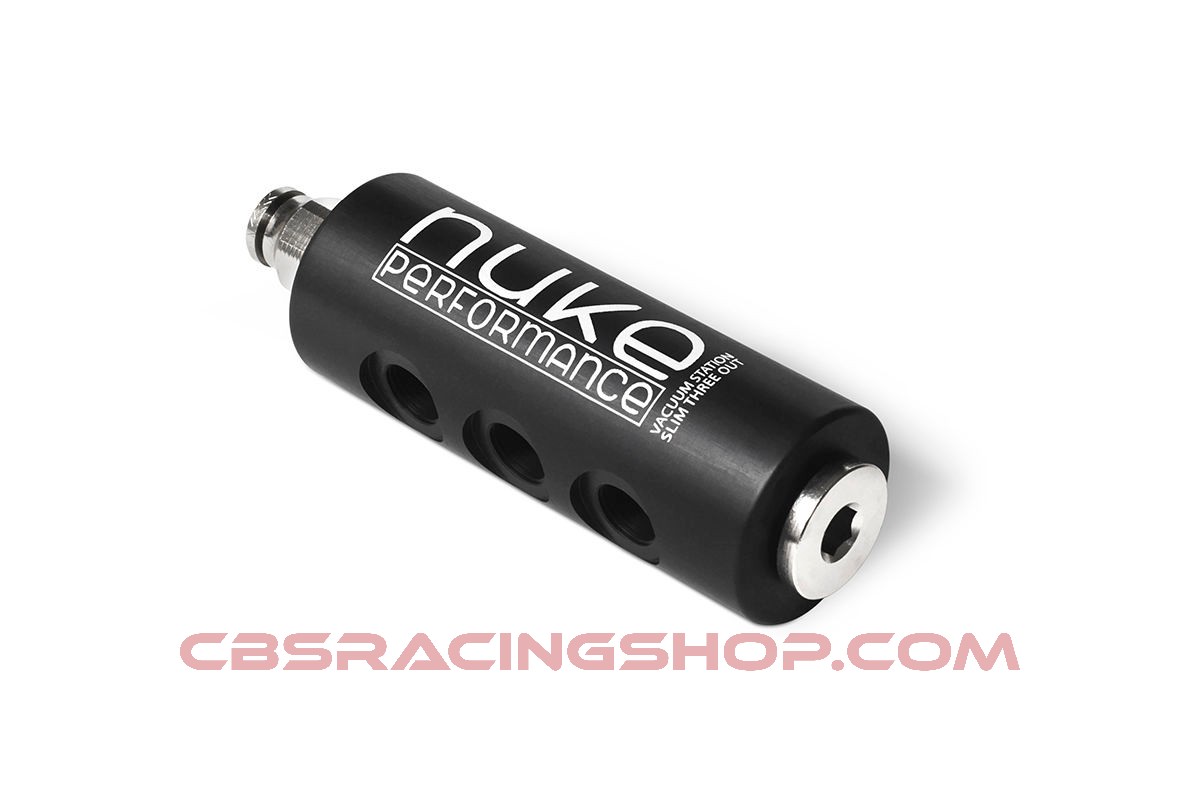

Nuke Vacuum Station Slim 3x outputs

Sorry - Dieses Produkt ist nicht mehr verfügbar

Hersteller: Nuke Performance
Artikelnummer: 600-01-202
49.00 EUR
Incl. 0% VAT (United States) | Ändern
49.00 EUR excl. VAT

The Nuke Performance Vacuum Station is the easiest way to get rid of to many vacuum hoses in the engine bay. Combine all your parts with the need for a vacuum connection into one connected to the manifold.

Verfügbarkeit: Nicht mehr verfügbar - Wenn bestellt, wird es versendet, sobald es verfügbar ist (3-7 days).
+ -

Quantity:

  • 1x Nuke Vacuum Station Slim 3x outputs
  • 1x 1/4 G Pneufit quick connect fitting and 1x 1/4 G Plug

----------------------

The body is CNC-machined from aluminum alloy 6082, anodized and laser engraved for long-lasting appearance and function.

Often used when using many parts that all need to be connected to the manifold, perfect for connection of fuel pressure regulator, blow off valve, fuel pressure gauge, fuel pulse dampers etc.

For use on turbo- super-charged engine applications.

Delivered with 1x 1/4 G Pneufit quick connect fitting and 1x 1/4 G Plug. The additional fittings are sold separately.

Thread size for the output ports are 1/8G and are sold separately due to the wide variety of different needs. We recommend the Nuke Performance 1/8 G Pneufit quick connect fittings to be used with this Vacuum Station.

Vacuum Station Slim is also available in x4 and x5 outlet ports setup.

---------------------------

Technical information:
• Aluminum extrusion from 6082-T6.
• The end thread is 1/4 G.
• The outlet thread is 1/8 G.
• Delivered with 1x 1/4 Pneufit Quick Connect fitting and 1x 1/4 Plug.
• Laser-engraved.


Measurements:
Length: 95 mm
Diameter: 29 mm
Weight: 140 g

* All measurements including the supplied fittings.

Produktspezifikation
Product Type Air intake
Year 1984–1987 (AE86), 1983-1988 (4th/N50/N60/N70), 2020-present (XP210/GXPA16), 2011-2015 (L10), 1989–1991 (ES250/V20/1), 1997-2002 (SF; 1st GEN), 2015-present (4th), E39 (2000-2004), 2007-2014 (WRX Hatch), 2010- (MK6 R20), 1989-1994 (400/UCF10), 2003-2009 (BK), 2009-2015 (W30), E65/E66 (2002-2005), 1989-1995 (P80/EP82), 1997-2004 (C5), 1978–1981 (A40/A50), 2015-2018 (W50), 1978-1983 (3rd/N30/N40), 1986–1993 (A70/MK3), 1980-1983 (2nd/SL/SS/SR/STVC/WD), 1990-1993, 2000-2005 (7th/ES/EP/EM), 1996-1999 (P90/EP91), 2002-2008 (SG; 2nd GEN), 1968-1972 (1st/N10), 2004-2010 (AT10), 2003–2005 (Evo 8/VIII), 1999–2007 (ZW30 - Spyder), 2005-2013 (XP90/2nd), 1987-1992 (E90/6th), 2009-2019 (X130), 2013-2018 (BM/BN), 2007-2014 (DE/DH), 2013-2017 (KE), 1992-1997, 2009-2011 (WRX Sedan), 1983–1989 (Z31), 2005-2011 (S190), 1991-2002 (E100/7th), 1999–2001 (Evo 6/VI), 1994–1995 (Evo 2/II), 2015-Present (ND), 2005- (MK5 R32), 1984-1987 (3rd/AH/AJ/AK/AT), 1999-2005 (GXE10), 1986−1991 (CV20/SV21/VZV21), 1997-2004 (JZS16*), 1988-1991 (4th/EC/ED/EE/EF), 2004-2006 (turbo), 1995-1999 (2nd GEN), 2015-present (6th GEN), 1986-1989, 2014-2019 (BN,BS; 6th GEN), 1992-1996 (JZX90), 2003-2007 (coupe), 1985-1992 (FC), 1989-1997 (NA/Miata), 1998-1999 (Evo 5/V), 200h (+2011), 1995–1996 (Evo 3/III), 2016-present (10th), E89 (2009-2016), 1999-2005 (XP10/1st), 1983-1987 (E80/5th), 1996-2001 (Series 1), 2011-2021 (Series 3), 2017-present (KF), 2014-2019, 1992–1996 (JZX90), 1989–1994 (R32), 1999-2007 (GS171,JKS175,JZS17*,UZS17*), 1997-2000 (1st/EK9), 2003-2009 (AP2), 1997-2004, 1990-1994 (1st GEN), 2018-present (Mk4), 2010-2016 (AT20), 2001-2006 (STi - SF and SG; 2GEN), 2002-2006, E36/7/8 (1995-2002), 2005-2013 (C6), 2005-2014 (5th GEN), 1989-1993 (BC,BF,BJ; 1st GEN), 2014-2018 (SJ; 4th GEN), 1989–1993 (T180), 1987-1991 (S130), 2005-2015 (7th/AN10/AN20/AN30), E53 (2000-2006), 2019-present (BP), 2007-2009 (BK), 1993-1997 (S147), 1991–2000 (Z30/SC300/400), 2003-2006 (sedan), 2014- (MK7), 2001–2003 (Evo 7/VII), 1997-2004 (MK4/A4/Typ 1J), 1991–1995 (5th/EG/EH/EJ), 2007-2011 (CJ), 2009-2011, 1994–2000 (400/UCF20/21), 1984–1989 (AW10), 2011-2020 (XP130/3rd), 1984-1989 (P70/EP71), 2014-present (DJ/DL), 2013-2018 (E170/11th), 2000-2006 (430/UCF30/31), 2015–present (XC10), 1991–1997 (FD), E90/E92/E93 (2007–2013), E81/E82/E87/E88 (2004–2013), 2003- (MK4 R32), 1992–1994 (Evo 1/I), 2014–present, 2005–2007 (Evo 9/IX), 1993–1998 (R33), 2006-2017 (460/UCF40), 2002-2007 (WRX/STI Wi), 2015-2017 (WRX FA20 S), 2011-2018 (WRX Sedan), E36 (1992–1999), 1989–2000 (Z32), 1988-1993, 1989–1999 (SW20), 2006-2011 (8th/FK/FN/FD/FA), 2011-2018 (Mk3), 1994-2004 (4th GEN), 2009-2014 (BM,BR; 5th GEN), 2019-present (SK; 5th GEN), 1996-2000 (GX10*,JZX10*,LX100), 2003-2008, 2014-2019 (WRX FA20 S), 2011-2015 (WRX Sedan), 1993-1997, 1998–2005 (XE10/IS200/300), 2001-2010 (Z40/SC430), 1973-1979 (1st/SB1/SG/SE/VB), 1999-2003 (AP1), 2005-2011 (Mk2), 1998-2004 (EB,BH,BT; 3rd GEN), 2009-2013 (SH; 3rd GEN), 2020-present (BW,BT; 7th GEN), 1998-2007 (J100), 2015-present (8th/AN120/AN130), 2019-present (A90/GR), 2002-2008 (GG1), 2007-2012 (GH1/GH2), 1990-2000 (Z3), 2000-2007 (GX11*,JZX11*), 1985–1989 (T160), 2005-2013 (XE20), 2009-2020 (Z34), 1986–1991 (Z20), 2009-2013 (MK6/A6/Typ 5K), 1996–1998 (Evo 4/IV), 1972-1978 (2nd/N20), 1988-1997 (5th/N80/N90/N100/N110), 2000-2006 (E120, E130/9th), 2002-2007 (DY), 2012-present (GJ1/GL), 1996-2001 (GX10*,JZX10*,LX100), 1993–1999 (T200), 1990-1997 (JZS147), 2004-2009 (X120), 1997-2005 (S160/161), 2007 - present (R35), 2007-2013, 2007-2016 (Evo 10/X), 2004-2008 (MK5/A5/Typ 1K ), 1999-2005 (NB), 1981–1985 (A60), 1994-1997, 1999-2000, E46 (2000–2006), E30 (1986–1991), 2006-2013 (E140,E150/10th), 2013 - present (XE30), 2012-2015 (9th/FB/FK), 2007-2010 (3rd/FN2/FD2), 1979-1993 (3rd GEN), 1993-1999 (BD,BG,BK; 2nd GEN), 2003-2009 (BL,BP; 4th GEN), 2018- (E210/12th), 1995-2002 (E110/8th), 2014- (MK7/A7/Typ 5G), 2005-2015 (NC), 2003-2009 (Z33), 1996-2000 (6th/EJ/EK/EM), F30/F31/F34/F35 (2011-2019), 2001-2005 (2nd/EP3), 1998-2004 (Mk1), 1989-2006, 1994–2001, G29 (2018-present), E85/E86 (2002-2008), 1999–2006 (T230), 1999–2002 (R34), 2011-2013 (WRX Hatch), 1993-2002 (A80/MK4), 1996-2001(GX10*,JZX10*,LX100,SX100), 2000–2006 (XF30), 2020-today (XP210/4th), 1997-2005 (6th/N140/N150/N160/N170), 1990-1997 (J80), 2001-2011 (Series 2), 2014-2019 (C7), 2018-today (W51), E46 (2000 - 2006), 2010-2013 (BL), 2023-present (GZEA14)
Model S15, Crown Majesta, Corolla, MR2, Mustang, Z3, Chaser, Legacy, Celsior, RC, Camry, Aurion, S6, Elise, RX8, Accord, MX5, 370Z, G35, Starlet, Silvia, Crown, IS, GT86, S3, Z4, G37, Hilux, 3-Series, CX-5, Cressida, Tundra, 350Z, 300ZX, Skyline, RS4, Q45, Civic Type-R, tC, Sequoia, Supra, Cresta, Yaris, 6, GT-R, Golf R, Q50, Prelude, M3, CT, SC, Lancer, Mark 2, Corvette, A4, Forester, Land Cruiser, 3, S4, Eclipse, Yaris GR, X5, 1-Series, Atenza, ES, LS, Mark X, S14, Golf, 5-Series, Altezza, BRZ, S13, RX-7, Aristo, Civic, Forte, S2000, S2, 996 / Carrera, Focus, Integra, Impreza, Celica, Soarer, GS, Prius, 7-series, Mazdaspeed 3, 2, Corolla GR, GR86
Make Volvo, Hyundai, Lotus, Mercedes, Infiniti, Mini, Porsche, Audi, Mitsubishi, Subaru, Saab, BMW, Nissan, Honda, Ford, Scion, Chevrolet, Volkswagen, Opel, Kia, Lexus, Mazda, Toyota
