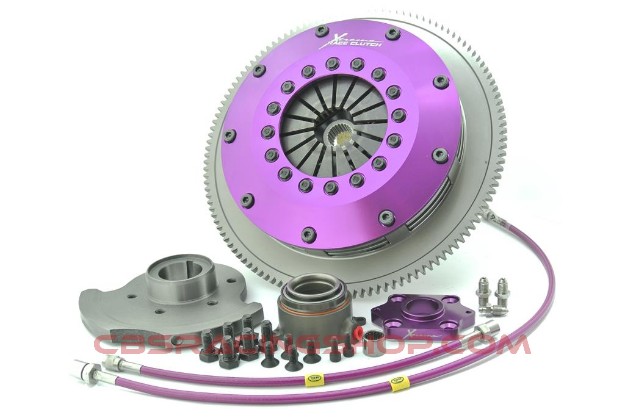

RE13B, 200mm Sprung Ceramic Twin Plate Clutch Kit Incl Flywheel & CSC 1200Nm - Xtreme Performance

Hersteller: Xtreme Clutch
Artikelnummer: KMZ20680-2B
2040.14 EUR
Incl. 0% VAT (United States) | Ändern
2040.14 EUR excl. VAT

RE13B 200mm Sprung Ceramic Twin Plate Clutch Kit Incl Flywheel & CSC 1200Nm

MULTI-PLATE - 200mm Sprung Motorsport Kits - 2B
Recommended for: Very High Horsepower Street & Motorsport Applications

Verfügbarkeit: Nicht mehr verfügbar - Wenn bestellt, wird es versendet, sobald es verfügbar ist (3-7 days).
+ -

RE13B 200mm Sprung Ceramic Twin Plate Clutch Kit Incl Flywheel & CSC 1200Nm

MULTI-PLATE - 200mm Sprung Motorsport Kits - 2B
Recommended for: Very High Horsepower Street & Motorsport Applications

Clamping Force 1000kg
Torque Rating 1200Nm
Bearing Contact Diameter 44-52mm
Bearing Load (@ 48mm) 218kg
Release Travel Required 6mm
Assembly Mass (without flywheel) 7.4kg
Disc Set Static Mass 2.15kg
Friction Thickness New 7mm (0.275")
Friction Thickness Worn 6.48mm (0.255")


Product Features:
  • Torque capacity 1200Nm
  • Kit contains everything you need for a successful installation + accessories
  • High torque sprung driven discs (common hub)
  • Push type billet alloy cover
  • 4140 Chromoly pressure & intermediate plates
  • Hardened steel wear posts
  • Low inertia
  • Serviceable components
  • SFI certified design
Clutch Disc Diameter (mm) 200
Clutch Disc Spline Count 23
Clutch Disc Spline Diameter (mm) 26.2
Torque (Nm) 1200
Flywheel Step +.5mm/.020""
Design Twin Plate
Stage Multiplate - track use only
Tech Bulletins
Clamp Load 1100Kg
Recommended for Motorsport
Ring Gear Tooth Count
Additional Information
Weight [KG] 16.85

Applications:

Make
Model
Year
Variant
Engine
MAZDA RX-7 III (FD) 1992.07-2002.08 1.3 Twin Turbo (FD3S. FD1031) RE13B 1308 Petrol 176 kW 239 BHP (1992.07 - 2002.08)



Xtreme Motorsport 200mm twin plate

The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.

The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).

Produktspezifikation
Engine Mazda RE13B
Product Type Clutch Kits
Make Mazda
Year 1991–1997 (FD)
Model RX-7
Clutch Disc Diameter (mm) 200mm
Power Rating @ Flywheel /Nm 1200 Nm
Disc Facing / Material Ceramic
Centre Disc Sprung
Disc Quantity Twin Disc
