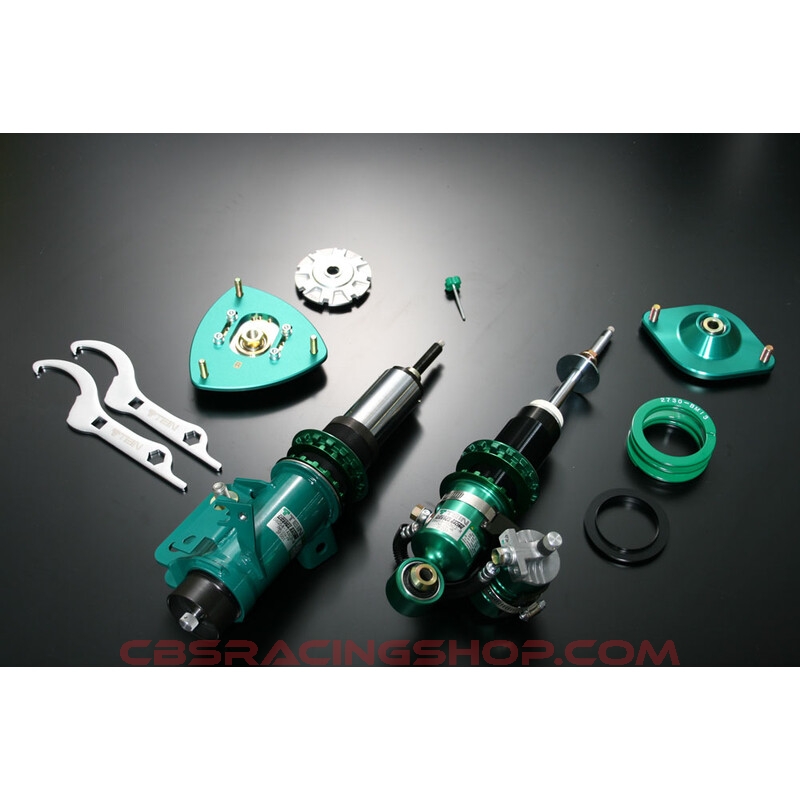

GT86/BRZ SUPER RACING DAMPER KIT, ZN6/ZC6
- Tein Super Racing coilovers for Toyota GT86
- Separate oil reservoirs
- Monotube dampers
- Height adjustment : from -20 to -55 mm (front) & -18 to -58 mm (rear)
- Tein reference : DSQ54-81LS1
- Compatible with Tein EDFC
- Aluminium bearing upper mounts
- Camber/caster adjustment for McPherson type
Please note, springs are not supplied by default with the Super Racing range. We invite you to contact us with the details of your project: we can thus advise you on the best spring rates according to your needs, and quote the complete suspension kit with custom springs.
Designed purely for competition, Tein Super Racing coilovers are fully adjustable to suit all possible race conditions. Height and preload adjustment is separate, giving full damper stroke at any ride height. Using mono-tube dampers, they give accurate, stable performance and excellent strength under heavy use.
External oil reservoirs provide maximum oil capacity for increased temperature control. Piston and spring specification comes from years of experience within competition.
Compression and rebound are separately adjustable, across 16 stages. These coilovers are compatible with Tein EDFC (sold separately), which give electronic damping adjustment from within the car. With EDFC, the level of adjustment increases to 32 stages (EDFC standard) or 64 stages (EDFC Active).
- Separate ride height and spring preload adjustment.
- Height adjustment : from -20 to -55 mm (front) & -13 à -53 mm (rear)
- Tein reference : DSQ54-81LS1
- Compatible with Tein EDFC (Ref. EDK05-12120)
- Fitment is "plug & play", no additional parts required
- Spherical bearing upper mounts (camber adjustable for McPherson suspension)
- Inverted dampers for reduced unsprung weight (McPherson type)
- Damper overhaul is available from Tein
For vehicles with McPherson suspension, these coilovers come with bearing camber/caster adjustable upper mounts. Camber is also adjustable at the damper mounting, due to eccentric inserts.
