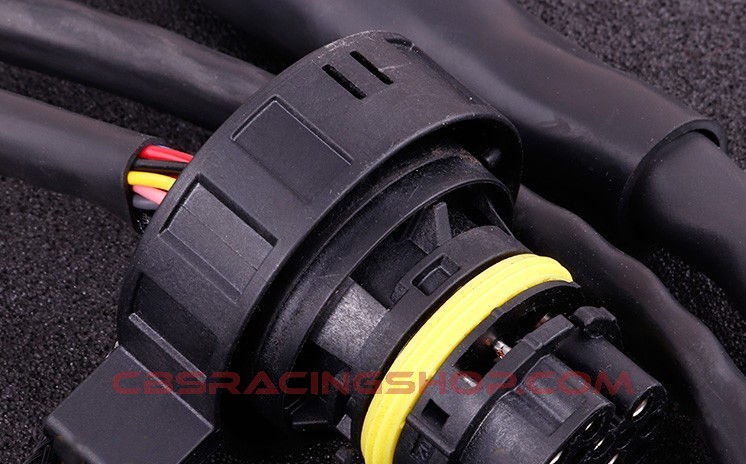

BMW DCT 16-pol connector - Including terminals
Sequential cylinders (max)
4
6
8
12
Wasted spark cylinders (max)
16
Waterproofed
✓
x
(H2O only)
Built-in MAP sensor (up to 3 bar/43.5 psi of boost)
Built-in wideband (LSU 4.2, 4.9)
✓(dual)
Built-in EGT
CAN bus
Built-in Bluetooth
Built-in E-Throttle
Built-in knock sensor support
✓(dual)**
Internal loggings (8MB)
Max internal log speed
1000Hz
Sensor inputs: IAT, CLT, TPS
Trigger inputs (VR/hall)
1
2
Extra analog inputs (temperature)
0
Extra analog inputs (0-5V)
Extra digital/VR inputs
Extra digital inputs
Injector outputs
4 saturated
6 saturated
6 (peak/hold)
8 (peak/hold)
16 (peak/hold)
Ignition outputs
Extra outputs (LOW DRIVING)
5
7
9
18
Extra outputs (HIGH DRIVING)
2 (2A)
8 (4A)
Extra motor outputs (HIGH/LOW)
4 (2A)
Launch control
Anti-lag/shift-cut
Traction control
✓*
Variable cam (VVTi/VANOS/VarioCAM) support
Flex fuel
Auto transmission support
Sequential gearbox control/throttle blip
NOS (multiple stages)
Boost control (multiple stages)
Pneumatic dragrace boost control
Advanced CAN bus in/out system
* depending on IO requirements..** Units manufactured (and sold) in 2018 and ongoing (REV 10+)
V1 = DISCONTINUED. MaxxECU RACE replaces the discontinued MaxxECU V1 unit.
