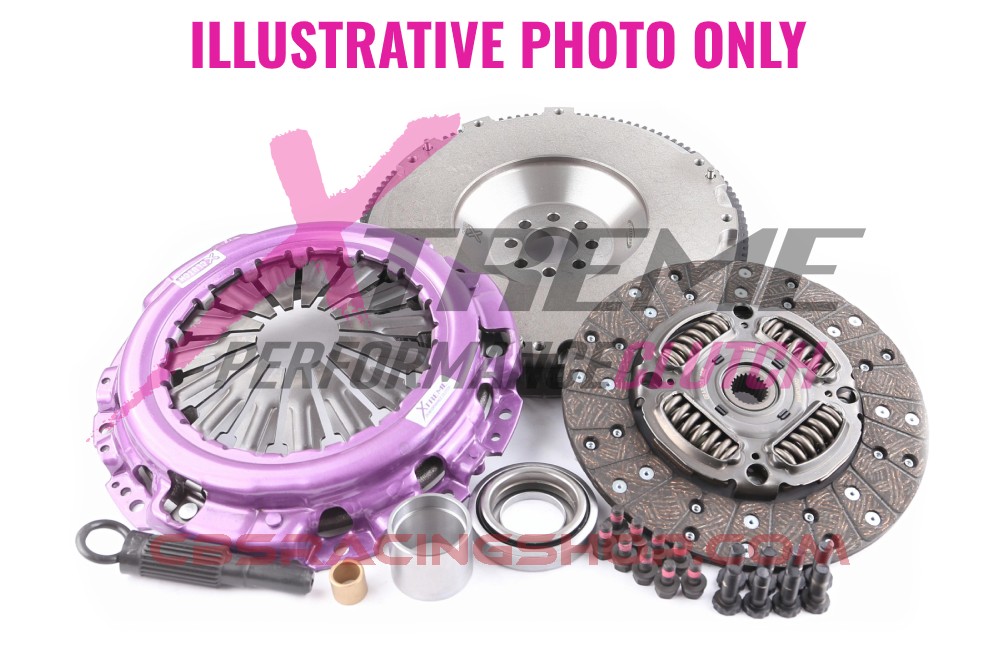

1CD-FTV Heavy Duty Organic Incl Flywheel 340Nm 785kg (20% inc.) Conversion kit Dual-mass to solid flywheel - Xtreme Performance

Hersteller: Xtreme Clutch
Artikelnummer: KTY23535-1A
1475.06 EUR
Incl. 0% VAT (United States) | Ändern
1475.06 EUR excl. VAT

1CD-FTV Heavy Duty Organic Incl Flywheel 340Nm 785kg (20% inc.) Conversion kit Dual-mass to solid flywheel

Xtreme Performance - sprung organic kit /-1A
Recommended for: Street use in vehicles with minor engine modifications.
Verfügbarkeit: Nicht mehr verfügbar - Wenn bestellt, wird es versendet, sobald es verfügbar ist (3-7 days).
+ -

1CD-FTV Heavy Duty Organic Incl Flywheel 340Nm 785kg (20% inc.) Conversion kit Dual-mass to solid flywheel

Xtreme Performance - sprung organic kit /-1A
Recommended for: Street use in vehicles with minor engine modifications.

Flywheel Step (mm) -15.5
Clutch Disc Diameter (mm) 225
Clutch Disc Spline Count 21
Clutch Disc Spline Diameter (mm) 29
Disc Type Sprung
Friction Material Organic
Stage 1
Recommended Use Street
Clamping Force % Increase 20%
Torque (Nm) Inc FOS 340
Torque (ftlbs) Inc FOS 250
Flywheel Included Single Mass
Spline Grease Included Yes
Note Conversion to Single Mass Flywheel
Transport Weight (kg) 22.1


SPECIFICATIONS:

  • Torque capacity 340Nm
  • Clamp load 785kg 20% Increased over standard
  • Organic Friction Discs
  • Heavy Duty Pressure Plate
  • Kit contains everything you need for a successful installation + accessories


APPLICATIONS:

Make
Model
Year
Variant
Engine
TOYOTA AVENSIS 1999.10-2003.02 2.0 D-4D (CDT220_) 1CD-FTV 1995 Diesel 81 kW 110 BHP (1999.10 - 2003.02)
TOYOTA AVENSIS 2002.09-2003.02 2.0 D-4D (CDT220) 1CD-FTV 1995 Diesel 85 kW 116 BHP (2002.09 - 2003.02)
TOYOTA AVENSIS 2003.04-2008.11 2.0 D-4D (CDT250_) 1CD-FTV 1995 Diesel 85 kW 116 BHP (2003.04 - 2008.11)
TOYOTA AVENSIS Liftback 1999.10-2003.02 2.0 D-4D (CDT220_) 1CD-FTV 1995 Diesel 81 kW 110 BHP (1999.10 - 2003.02)
TOYOTA AVENSIS Liftback 2002.09-2003.02 2.0 D (CDT220_) 1CD-FTV 1995 Diesel 85 kW 115 BHP (2002.09 - 2003.02)
TOYOTA AVENSIS Wagon 1999.10-2003.02 2.0 D-4D (CDT220_) 1CD-FTV 1995 Diesel 81 kW 110 BHP (1999.10 - 2003.02)
TOYOTA AVENSIS Wagon 2002.09-2003.02 2.0 D (CDT220_) 1CD-FTV 1995 Diesel 85 kW 115 BHP (2002.09 - 2003.02)
TOYOTA AVENSIS Wagon 2003.04-2008.11 2.0 D-4D (CDT250_) 1CD-FTV 1995 Diesel 85 kW 116 BHP (2003.04 - 2008.11)
TOYOTA AVENSIS sedan 2003.04-2008.11 2.0 D-4D (CDT250_) 1CD-FTV 1995 Diesel 85 kW 116 BHP (2003.04 - 2008.11)
TOYOTA COROLLA 2002.01-2006.12 2.0 D-4D (CDE120R_. CDE120L_) 1CD-FTV 1995 Diesel 81 kW 110 BHP (2002.01 - 2006.12)
TOYOTA COROLLA 2002.01-2006.12 2.0 D-4D (CDE120_) 1CD-FTV 1995 Diesel 66 kW 90 BHP (2002.01 - 2006.12)
TOYOTA COROLLA 2003.05-2007.02 2.0 D-4D (CDE120R_. CDE120L_) 1CD-FTV 1995 Diesel 85 kW 116 BHP (2003.05 - 2007.02)
TOYOTA COROLLA Verso 2004.04-2009.03 2.0 D-4D (CUR10_) 1CD-FTV 1995 Diesel 85 kW 116 BHP (2004.04 - 2009.03)
TOYOTA COROLLA Wagon 2002.01-2007.02 2.0 D-4D (CDE120_) 1CD-FTV 1995 Diesel 66 kW 90 BHP (2002.01 - 2007.02)
TOYOTA COROLLA Wagon 2004.04-2007.02 2.0 D-4D (CDE120_) 1CD-FTV 1995 Diesel 85 kW 116 BHP (2004.04 - 2007.02)
TOYOTA COROLLA sedan 2002.01-2006.12 2.0 D-4D (CDE120_) 1CD-FTV 1995 Diesel 66 kW 90 BHP (2002.01 - 2006.12)
TOYOTA COROLLA sedan 2004.06-2007.07 2.0 D-4D (CDE120_) 1CD-FTV 1995 Diesel 85 kW 116 BHP (2004.06 - 2007.07)
TOYOTA RAV 4 II 2001.05-2005.11 2.0 D 4WD (CLA20_. CLA21_) 1CD-FTV 1995 Diesel 85 kW 116 BHP (2001.05 - 2005.11)



Stage 1 - Organic Clutch Kits - SPRUNG ORGANIC - 1A

Recommended for: Street use in vehicles with minor engine modifications.
Sprung organic clutch kits offer exceptional driveability for vehicles used daily but also have performance modifications. The sprung organic disc offers improved dampening which reduces the shock loading on the transmission.

Xtreme Performance
At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

What's in the Box?
Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Produktspezifikation
Engine Toyota 1CD-FTV
Product Type Clutch Kits
Make Toyota
Model Corolla
Power Rating @ Flywheel /Nm 340 Nm
Clutch Disc Diameter (mm) 225mm
Disc Facing / Material Organic
Disc Quantity Single Disc
Centre Disc Sprung
