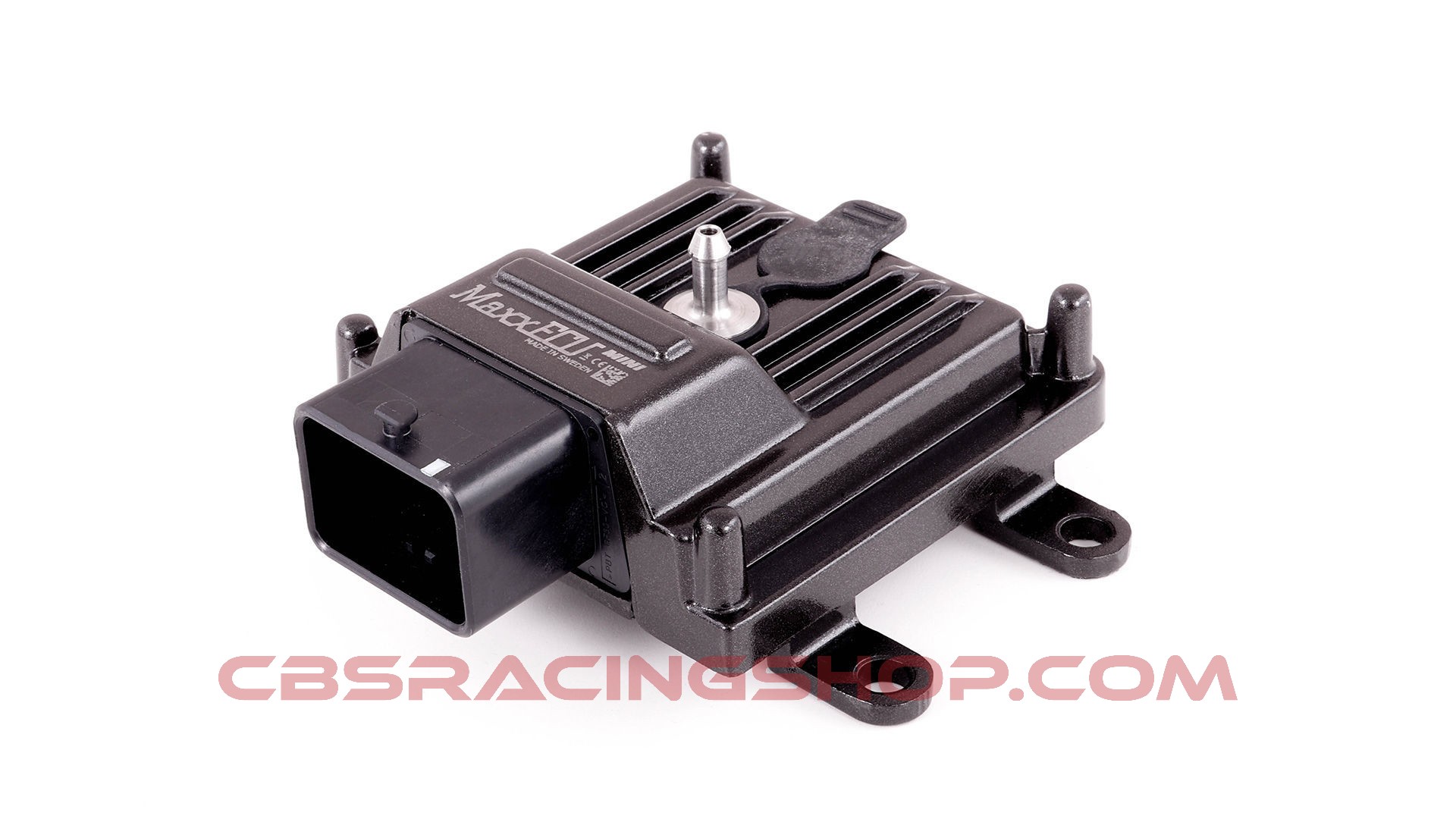

MaxxECU MINI ECU

Manufacturer: MaxxECU
SKU: ME-MAXXECU-MINI
537.24 EUR
Incl. 21% VAT (Netherlands) | Change

Advanced entry-level engine control system for up to 4 sequential cylinders. Up to 8 in wasted spark. Faster and easier tuning with the built-in MAP-sensor up to 3 bar / 43.5 psi of boost.

Get started faster with the easy-to-use MTune PC-software

For more information, check the info charts below.

*
Availability: Please select required attribute(s)
+ -

Advanced entry-level engine control system for up to 4 sequential cylinders. Up to 8 in wasted spark. Faster and easier tuning with the built-in MAP-sensor up to 3 bar / 43.5 psi of boost.

Get started faster with the easy-to-use MTune PC-software

Selected features

  • Waterproofed aluminum case
  • Boost control (triple-stage)
  • Traction control
  • Internal loggings
  • Shift-cut and launch
  • Advanced warning system
  • Launch control
  • Built-in MAP-sensor
  • 4 injector outputs (high impedance)
  • 4 ignition outputs
  • 4 extra outputs (GPO)
  • 2 extra analog inputs (0-5V)
  • 2 extra digital inputs (HALL)
  • CAN bus

-------------------------------------

Target engines for MaxxECU MINI

  • All 1-4, 6 and 8 cylinder engines
  • Up to 4 cylinders fully sequentially (using a digital input as HOME)
  • Up to 8 cylinders in wasted spark

MaxxECU MINI inputs

  • Intake air temperature sensor (IAT)
  • Coolant temperature sensor (CLT)
  • Throttle position sensor (TPS)
  • 1 trigger input (VR/HALL). Automatic trigger level detection
  • 2 digital inputs used for example for speed sensors (Hall) or switches
  • 2 extra 0-5V inputs. Can be used for additional sensors such as for measurement of fuel/oil pressure
  • Built-in 400kPa MAP-sensor for up to 3bar/43PSI of boost

MaxxECU MINI outputs

  • 4 injectors outputs. High impedance only
  • 4 ignition outputs. 5V signal to drive ignition modules, CDI units or coils
  • 4 outputs for extra features. Can be used to control virtually anything. Fuel pumps, idle control, boost solenoids, nitrous, shift lights, fans, warning lights, etc. GPO 1-3 (2A), GPO 8 (2A)
MaxxECU MINI technical
  • CAN bus for expansion modules, OEM vehicle CAN, OBDII
  • USB communication for tuning with MTune
  • 8MB memory for internal logging, up to 1000Hz
  • Supply voltage 8-22V
  • ARM Cortex-M3 120MHz main processor
  • Resolution on ignition: 0.1 degrees
  • Resolution on injectors: 0.001 ms
  • Updates the fuel and ignition calculations 2000 times per second
  • The fastest PC communication on the market
  • 85x120x43mm excluding protruding connectors
  • Weight: 245g (ECU only)
  • Waterproofed aluminium case

FEATURES

MINI

STREET

SPORT

V1

RACE

PRO

Sequential cylinders (max)

4

6

6

8

8

12

Wasted spark cylinders (max)

8

12

12

12

12

16

Waterproofed

x

(H2O only)

Built-in MAP sensor (up to 3 bar/43.5 psi of boost)

Built-in wideband (LSU 4.2, 4.9)

x

(dual)

Built-in EGT

 x

x

8

8

12

CAN bus

(dual)

Built-in Bluetooth

x

Built-in E-Throttle

x

x

x

(dual)

Built-in knock sensor support

x

x

x

x

(dual)

(dual)**

Internal loggings (8MB)

Max internal log speed

1000Hz

1000Hz

1000Hz

1000Hz

1000Hz

1000Hz

Sensor inputs: IAT, CLT, TPS

Trigger inputs (VR/hall)

1

2

2

2

2

2

Extra analog inputs (temperature)

0

2

2

2

2

6

Extra analog inputs (0-5V)

2

2

6

2

6

16

Extra digital/VR inputs

0

0

0

2

4

4

Extra digital inputs

2

2

2

0

0

6

Injector outputs

4 saturated

6 saturated

6 (peak/hold)

8 (peak/hold)

8 (peak/hold)

16 (peak/hold)

Ignition outputs

4

6

6

8

8

12

Extra outputs (LOW DRIVING)

4

5

7

9

9

18

Extra outputs (HIGH DRIVING)

x

x

x

x

2 (2A)

8 (4A)

Extra motor outputs (HIGH/LOW)

x

x

2 (2A)

x

4 (2A)

4 (2A)

Launch control

Anti-lag/shift-cut

Traction control

*

*

*

*

Variable cam (VVTi/VANOS/VarioCAM) support

*

*

*

*

Flex fuel

Auto transmission support

x

*

*

*

Sequential gearbox control/throttle blip

x

x

*

*

*

NOS (multiple stages)

Boost control (multiple stages)

Pneumatic dragrace boost control

Advanced CAN bus in/out system

* depending on IO requirements..
** Units manufactured (and sold) in 2018 and ongoing (REV 10+)

V1 = DISCONTINUED. MaxxECU RACE replaces the discontinued MaxxECU V1 unit.

Not sure what package you need? Check what's included below:

INCLUDED ITEMS

BASIC

STANDARD

PREMIUM

The MaxxECU motorsport unit

ECU connector (s) and terminal (s)

x

x

Wiring harness for ECU connector 1

x

USB cable for superfast communication

Push-lock to barb (MAP-sensor connection)

x

x

MAP-sensor push-to-lock hose kit

 x

Printed wiring diagram

Printed quick start guide

All items in a box

Bosch LSU 4.2 wideband oxygen sensor (2 for PRO)

x

x

LSU 4.2 connector (2 for PRO)

x

x

Additional wiring harnesses (if available for the ECU)

x

x
