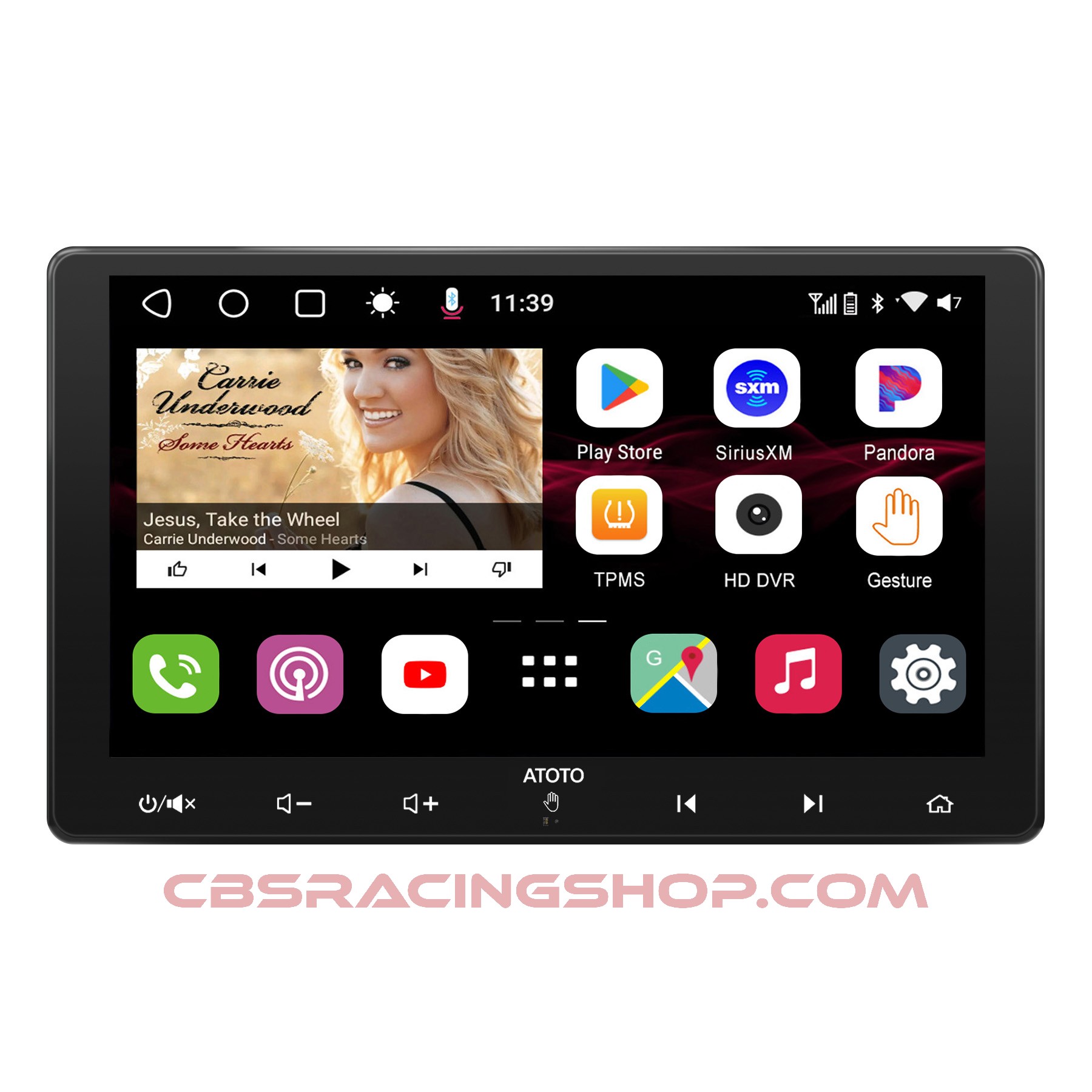

Atoto Ultra Plus Gen2 10" Android Car Navigation Radio

• Product Model: S8 Ultra Plus (Gen 2): (6GB+128GB), Mounting style: DAH10D (Double-DIN Adaptive Head-unit of 10.1-inch Display); The letter N in the model name means its 4G Cellular Modem supports main frequency bands of the major operators in North America (USA/Canada/Mexico), so it may be incompatible with some other operators from non-North America areas; If you need another version (S8G2109UP-A) that works with operators from European & Asian areas, check for alternative listings/ASIN;
• System Information: SoC Chip: UNISOC 7862 ARM Cortex Octa-Core (up to 1.8GHz) CPU with ARM Mali-G52 MP2 GPU, advanced 12nm manufacturing process. System Version: ATOTO AICE UI 11.0, which is developed & customized based on Android Q(10.0); System Language: English, German, French, Italian, Spanish, Portuguese, Japanese, Russian, Arabic, and other 12 languages.
• DSP / Pre-Amplifier: Built-in Digital Signal Processor allows you to set precise equalization, signal delay, bass boost, and bass filter. Preset 9 EQ Modes, and 32 adjustable frequency bands (16 bands for front and 16 for rear). Built-in Max 4*49W BTL Amplifier with RMS 4*29W (Vcc=14.4v, THD=10%)
• Bluetooth & Radio Tuner: Dual Bluetooth (BT1 5.0 & BT2 4.1). Bluetooth1 is Qualcomm Bluetooth 5.0 with aptX &aptX HD codec (SBC & AAC are also supported), and it supports HFP/HSP/A2DP/AVRCP/PBAP protocols; Radio tuner:Built-in high sensitivity FM/AM radio tuner with RDS/RBDS feature (and the radio station name will be displayed if available);
• Display: Full HD 10.1-inch 1280x720 5-Touch Capacitive Touchscreen with 600cd/m2 latest QLED screen (a type of quantum film LED-backlit LCD technology which can greatly improve the color effect, and can provide very clear and vivid picture quality. It also inherits the advantages of 178° full-viewing angle and high contrast of the IPS LCD);
• GPS/Navigation: Built-in GPS Receiver module with an external GPS antenna and Google Maps app is installed as the default GPS map.Users may need to download offline map data of a specific area for offline navigation if preferred. Other maps/navigation apps from Google Play Store can also be installed;
• Phone Mirroring & Phone Integration Link: Phone Mirroring - EasyConnect app pre-installed, it supports working with the latest iOS & Android devices (the system firmware update may be required). Two options (USB /WiFi) are all available for connecting to Android smartphones and iPhone; Phone Integration Link (wired / wireless CarPlay；wired / wireless Android Auto) - It seamlessly integrates your smartphone (iPhone & Android) with the S8's built-in display, allowing you to make phone calls, access your music, send and receive messages, get directions (Note: for the wired CarPlay and Android Auto Connection on ATOTO S8 series head-units, please use the factory/original USB cable that comes with the phone).

Some Other features: Fast System Boot - Start the car & access system within 2 seconds;

• Split Screen Display - Run a navigation map and another apps (such as Youtube) on the screen simultaneously;
• Digital Photo Frame option - Users can put memorable photos in the specified Gallery Folder and let them play automatically on S8's HD big screen with only a tap;
• Speed Compensated Volume Control (SCVC)- When you increased in speed the headunit volume increased a certain percentage and when you slowed down, the volume dropped. This is to compensate for road noise;
• USB network tethering - sharing your phone data with S8 headunit via the USB connection (EasyConnect app);
• Live Rear View (LRV) - Now you can access rearview even if your vehicle in moving ahead. This could remove obstructions caused by passengers, headrests and the vehicle’s roof and rear pillars, increasing the field of view and allowing the driver an unimpeded view of the lanes behind and traditional blind-spots.
• Gesture Control - It can recognize 9 hand-gestures and up to 24 options can be programmed.

Inputs,Outputs & Slots

• AUX Audio(L/R) /Video input; FCAM front camera video input; Rearview camera input (S8 can process 720P HD video signal. So you can connect a specific HD rearview camera to S8 for 720P video display); 4-CH RCA Audio Out (2v) for connecting to factory/aftermarket amplifier; Separate Sub-woof Out (0.8v); For S8 Ultra Plus, Optical SPDIF Out and Quick Charge interfaces are available; To connect with a headrest monitor, you need to get an extra ATOTO USB-to-HDMI or USB-to-RCA video output adaptor(not included);
• One Micro SD slot - to store media files, it can read up to 512GB storage card; 5 USB interfaces - 4 for the data communication, including reading USB Drive (read unlimited external storage devices, including portable SSD) & optional USB devices, and connecting phones for Mirror casting/EasyConnect or Phone Integration Link; 1 USB for the fast phone charge.

Important: When installing the display module, please be sure not to leave any screw hole open and tighten the screws, otherwise there may be problems with the display module (stripes, screen freezes, blurry screens, etc.) .

Vehicle Fit:

• For ATOTO S8 with 10.1-inch floating display (DAH10D), the front faceplate of its double-DIN base has dimension of 178x100(mm), and its 10.1-inch screen dimension is 252x155(mm). The 10.1-inch floating display stands out from its double-DIN base allowing users to adjust height and view angles (up or down). Even though, for certain vehicles, the edge of the large screen may block the air vent, emergency switch button, or other buttons, resulting in inconvenience. You need to check and be sure yours won't have such problems, or you can accept that.

Notice: Optional parts for working with ATOTO S8 Ultra Plus (sold separately):

1. ATOTO CA-AEC02 Plug-n-Play 4 Channel Power Pack Amplifier (60 watts RMS x 4), a punchy audio booster with SPDIF input (*For a long chassis head unit, we recommend installing CA-AEC02 somewhere other than the 2-DIN opening, such as under the co-pilot seat);
2. ATOTO AC-44P2 1080P On-dash DVR Camera;
3. ATOTO AC-44F5 Steering Wheel IR Remote;
4. ATOTO AC-4450 Bluetooth OBD II Scanner / Code Reader;
5. ATOTO AC-HD02LR HD Live Rear-view Camera or AC-HD03LR Wide-angle HD Rear View Camera (for Virtual Surround-View & Live rearview);
6. ATOTO AC-UTP1 USB TPMS (Tire Pressure Monitoring Sensor);
7. ATOTO Video Output Adaptor (AC-AHV68: USB to HDMI Adaptor; AC-AHV48: USB To RCA Adaptor). *Some of them must be connected before installing S8; For more accessories, please visit the ATOTO Brand Store on Amazon.
