- Mono Racing
MONO RACING is developed to satisfy the drivers who frequently take their cars for a spin at the race tracks. Based on the settings of the high-end model SUPER RACING and on a wealth of data gained through participation in various motorsports, spring rates and damping force for MONO RACING are determined to be most suitable for sports driving.
- Pure performances for the track
- To suit Toyota GT86
- Height adjustment from -15 to -72 mm (front) and from -15 to -75 mm (rear)
- Camber and caster adjustable top mounts
- Spring rates : 8 to 12 kgF/mm (front) and 8 to 12 kgF/mm (rear)
- Tein EDFC compatible (EDK05-12140)
- OEM specification brake hose fittings
- Anti-corrosion coating and dust boots
- 1 year warranty
- Tein part no. : VSTD8-K1LS1
- Sold as a set of 4
*RR: Interior needs to be cut or removed, to avoid interference. Camber adjustment washers with different offsets are available (sold separately). From the positive angle set with the included washers, replace the washers with optional washers sps12-r16100-25 to set the angle further positive, and with sps12-r16100-05 to set to negative direction. From the negative angle set with the included washers, replace the washers with optional washers sps12-r16100-05 to set the angle further negative, and with sps12-r16100-25 to set to positive direction (both sold separately).2 Eccentric washers per vehicle are required. Front springs : selected from 8, 10, 12k. Rear springs : selected from 8, 10, 12k. Us&uk spec included front: 10k / rear: 10k. Optional springs- front: 8, 12k / rear: 8, 12k.

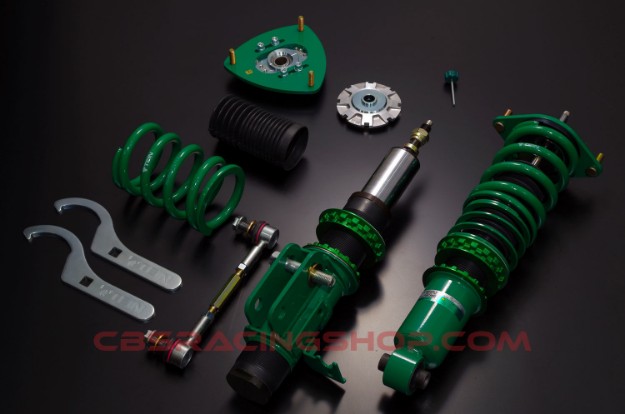

Tein Mono Racing Coilovers for Toyota GT86
With the new Mono Racing range, Tein bring you high quality and precise suspension, ideal for competitive use. Developed to deliver outstanding performance on the road and on the track, these Tein Mono Racing coilovers are the fruit of decades of racing experience.
Thanks to their monotube design and their latest generation hydraulic valve mechanisms, they ensure outstanding performance and excellent precision in fast driving on the road and on the track. Compression is stable, constant, resitant and linear. Height adjustment is independent from the spring preload. This allows you to extort the entire stroke of the shock, even with extreme lowering. These Mono Racing kits feature a new, more durable oil formula. Their advanced design and ultimate quality ensure maximum communication between the road and the driver.
- 16-stage adjustable damping
- Height adjustable from -15 to -72 mm (front) and from -15 to; -75 mm (rear)
- Custom spring rate : 8, 10 or 12 kgF/mm (front) and 8, 10 or 12 kgF/mm (rear)
- Bolt on installation
- Pillowball upper mounts, camber and caster ajustable (McPherson suspension only)
- Eccentric collars allowing for camber adjustment on lower brackets
- Fully rebuildable dampers : rebuild/overhall service available from Tein
These coilovers are compatible with Tein EDFC (part number EDK05-12140, available separately), for adjusting damper stiffness electronically from inside the car. With EDFC, the level of adjustment is increased to 32 stages (EDFC standard) and 64 stages (EDFC Active).);
Using Japanese manufacturing, Tein products enjoy a long lifetime and protection against corrosion, dust and temperature change. They also come with a 1 year warranty.
