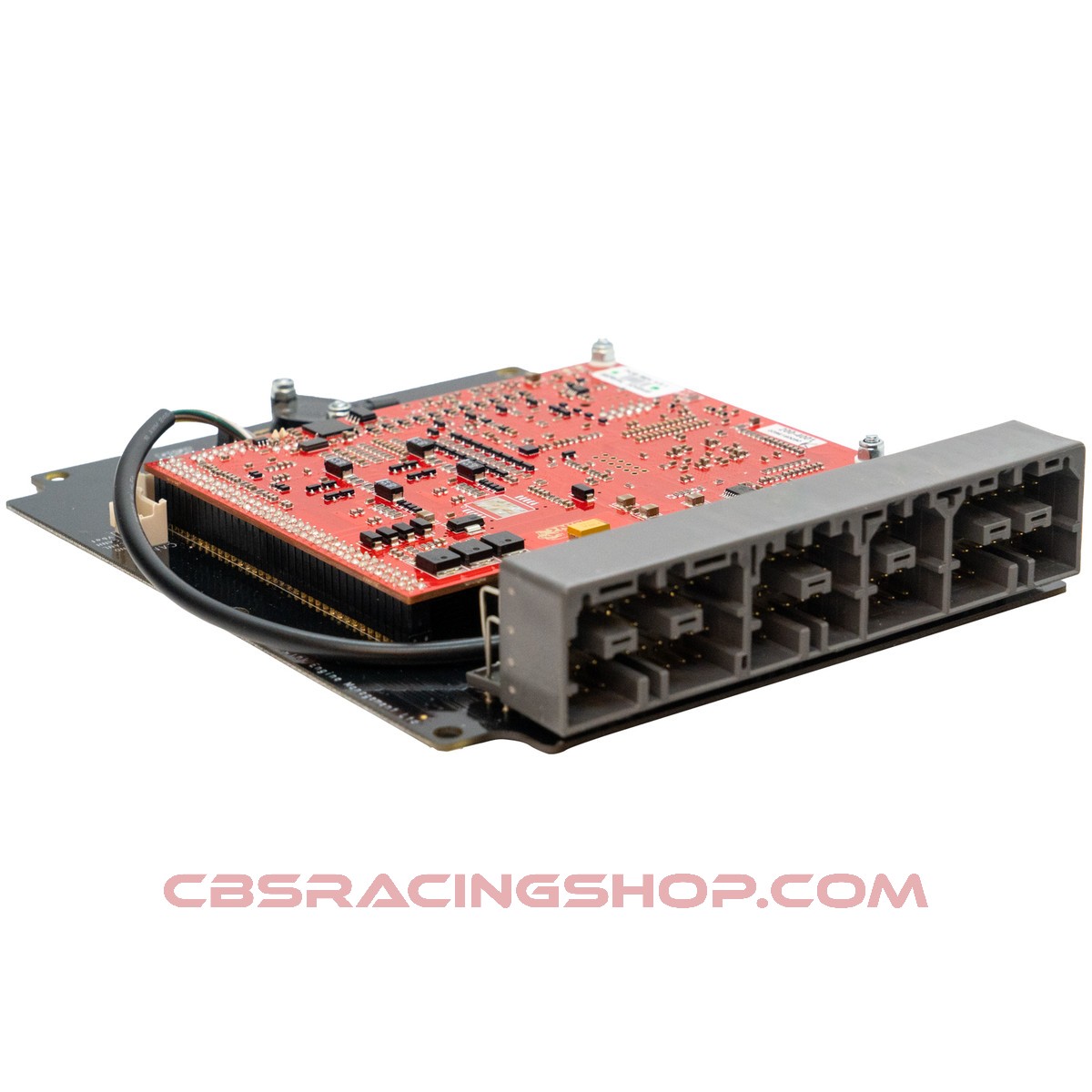

Easy to install. Affordable. Reliable. G4X PlugIn ECUs offer the latest in engine management technology, designed to easily maximize the potential from your car. This ECU fits inside the factory OEM enclosure. Installation is a breeze, with no alteration of the factory wiring loom required for the models listed below.Designed for the 1JZ-GTE (Non-VVTi) engine.
Suitable applications:
Note: This Plug-in features a new 4 pin powered CAN connector and cannot use the old CANPCB cable for CAN connection. Use the CANJST4 (Link PN 101-0198) cable for connecting CAN devices. This new 4 pin port and cable provide not only the CAN connection, but also a protected 12V power supply and ground for powering the CAN devices. The power supply is protected by a self-resetting fuse rated at 3A continuous.
Features:
G4X PlugIn Key Features (where applicable):Up to 6D fuel and ignition mappingPrecision closed loop cam control (four cam, independent control)Sequential fuel deliveryDigital triggering, all OEM patternsOEM idle hardware supported5D boost control with three switchable tablesMotorsport features - antilag, launch, flat shiftContinuous barometric correction (on board)CAN portQuickTune - automated fuel tuningIndividual cylinder correctionUSB tuning cable includedStats recording into on-board memoryGear compensations for spark, boost and fuelReal time selectable dual fuel, ignition and boost mapsSync and crank sensors can be a combination of Hall effect, variable reluctance or opticalBoost control referenced to gear, speed or throttle position512 mega bytes data logging memoryStaged injectionKnock with "windowing"I/O Expansion Options:The following expansion connector inputs/outputs are provided: Expansion Connector 1 Pin 1 Ground (signal)Pin 2 +5v outPin 3 Injector 6Pin 4 DI8Pin 5 DI7Pin 6 IGN8Pin 7 AN TEMP 4Pin 8 AN TEMP 3E-Throttle Connector Pin 1 Ground (signal)Pin 2 +5V outPin 3 An Volt 4Pin 4 An Volt 5Pin 5 An Volt 6Pin 6 An Volt 7Pin 7 Aux 10Pin 8 Aux 9
