TM012SBMC1 - Carbon-R Twin Hyper Series - EXEDY

SPECIFICATIONS:

• Outer Diameter (mm)
  200

• Disc Facing
  Carbon


• Push/Pull Type
  Push


• Sprung Centre Disc?
  No


• Torque @ Flywheel
  420 lb-ft / 570 Nm


• Torque @ Wheels
  340 lb-ft / 460 Nm


• Clamp Load (N)
  11700


• Includes Flywheel?
  Includes flywheel


• Additional Information
  Without releaser

 And CELICA - 3S-GTE - '88 - '99

DESCRIPTION

In 1995 EXEDY supplied carbon clutches to Ferrari for use in the pinnacle of motorsport, Formula One. This same technology is now applied to carbon clutches developed by EXEDY for use in various driving conditions, providing an explosive shift feeling and dramatic improvement in engine response.

Through an improved redesign of the cover shape and using a lightweight flywheel, we have improved the response and achieved a reduction of total car weight. For example, a full carbon triple clutch on a Nissan R32 is almost half the weight of the vehicle's genuine part. The EXEDY Carbon-R clutch is available as either a single plate (Carbon-R Single), twin plate (Carbon-R Twin), or triple plate (Carbon-R Triple).

Suitable for:
Track Day
Circuit Racing
Time Attack

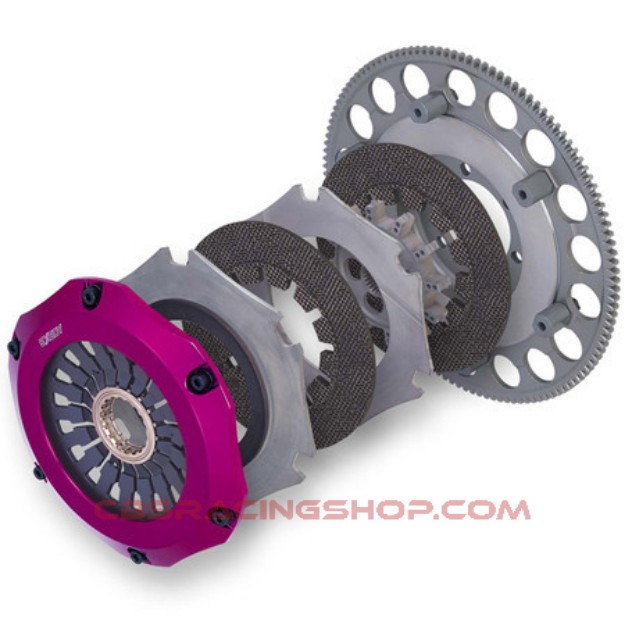

Carbon-R Twin
Main Benefits
Rigid type center hub design gives the Carbon-R the ultimate shift response.
Lightweight flywheel and hub design significantly reduce inertia, giving excellent acceleration response.
Added SX coating to the Pressure plate and Intermediate plate further increases stability and torque capacity.
40 to 50% reduction in inertia over the original equipment part.

The Features of a Carbon Disc
Long Life
The properties of an EXEDY carbon clutch disc are tested to last twice as long as an equivalent metal clutch disc.
Light Weight
The carbon friction material is 1/3 the weight of its metal equivalent.

High Heat Durability
Carbon materials are baked at more than 2000 degrees C, which allows the carbon material to dissipate heat far better than conventional metallic material. The heat expansion rate is 1/20th of iron, therefore, eliminating a change in clutch feel that may happen due to distortion caused by expansion during driving. Carbon material not only has a high heat resistance but also a non-stick characteristic that eliminates disengagement problems.

Easy Control & High Torque Transfer
Due to the properties of EXEDY Carbon material, as the friction material surface temperature rises so does the friction coefficiency and MAX torque capacity. At lower temperatures, the vehicle will be as comfortable to drive as the OE clutch. At higher temperatures, under aggressive driving conditions, the clutch will have the shift performance of a motorsport vehicle.
