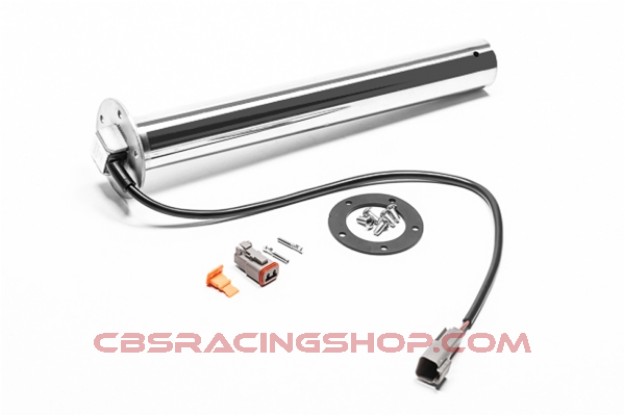

INCLUDED
-Level Sensing Probe
-SAE 5-Bolt Gasket
-Stainless Bolts 10-32 (x5)
-Deutsch DT 2P Connector
-Deutsch DT Sockets (x2)
Part Number 20-0747-203 is shown above. Part Number 20-0847-297 is shown below.
This fuel level sensor uses the standard SAE 5-bolt mounting pattern, extensively used with the Radium Fuel Cell Surge Tank.
Full stainless steel sealed construction with magnetic float.
Suitable for use with gasoline, diesel, water, and all alcohol-based fuels including methanol, ethanol, E85, etc.
NOTES:
-All level senders are 0 ohms empty to 90 ohms full (common with many aftermarket gauges.)
-Radium does not sell fuel level gauges, but a popular option is this Autometer Fuel Level Gauge
-To test the sender, measure the resistance between the two wires while tipping the sender to allow the float to move.
-If purchased with a Radium Fuel Cell Surge Tank (FCST), the sender will come pre-installed.
-If the output of this sender is not compatible with your OEM fuel gauge, consider a resistance signal converter.
(Radium Engineering does not have experience with this product, contact Classic Instruments for more information)
SPECIFICATIONS:
PROBE MATERIAL: 304 Stainless Steel
FLOAT MATERIAL: Plastic Buna-N
MOUNTING FLANGE: 5-Bolt SAE
MOUNTING GASKET: FKM
RESISTANCE: 0 (Empty)-90 (Full) Ohms
PVC WIRES: 18" (460mm) with PA Cover
CONNECTORS: Deutsch DT, 2P
OPERATING TEMP: -40F to +185F
ATTENTION:
1. The fuel level float shroud from Radium 20-0847-XXX is only compatible with newer Radium FCSTs (20-099X-XX).
2. For previous Radium 20-049X-XX and 20-069X-XX FCST versions, the non-shrouded Radium 20-0747-XXX must be used.
3. Non-shrouded Radium 20-0747-203 and 20-0747-297 level senders are compatible with all Radium FCST part numbers.
- 20-0439 12AN ORB to 5-Bolt SAE Adapter
When a level sender is not used, this adapter can be used to increase venting for custom installations. It converts the fuel level flange to a large 12AN ORB female port.
NOTE: a fuel level sender cannot be used with this adapter in place.
- 20-0146 Fuel Level Sender Block-Off
This block-off plate kit is used when the 5-bolt SAE flanged fuel level sensor is not used. This is extensively used for customers with the Radium Fuel Cell Surge Tank. NOTE: Radium 20-049X-XX FCST does not require sealing washers.
Includes:
-Anodized 1/8" Aluminum Blank Plate
-5 Bolt Sending Unit FKM Gasket
-Stainless Steel 10-32 Threaded Bolts
-Nylon Sealing Washers
18-0020 Gasket, 5-Bolt Fuel Level Sender
This 5-bolt SAE pattern gasket is used for many fuel cell level senders. The 1/16" thick material is a premium quality variation of FKM.
