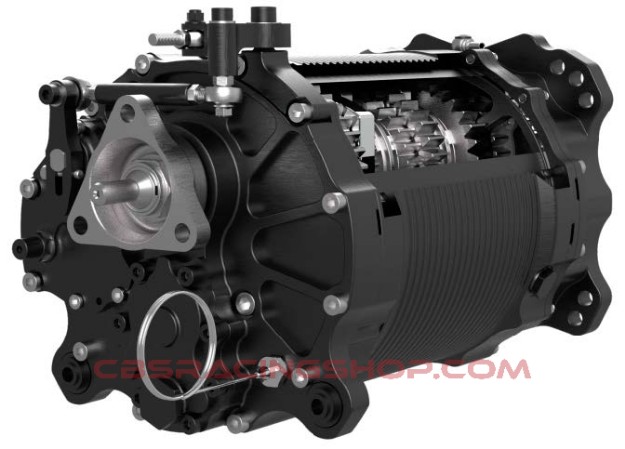

Universal RWD SEQUENTIAL RS90 5 speed* bellhousing, shifter, display and sensors extra
- 400 different ratio options
- 200 different clutchshafts options
- Transaxle option for Corvette C5, C6, C7
- Transaxle option for Winters differential
- 4WD option for Skyline GTR R32, R33, R34
- 15 options of rear flanges: 1350 series Yoke T10 / Slip, all BMW, Toyota, Nissan, Mazda, GM
- Over 70 options of engine bellhouse fittings: Audi/VW, BMW, MB, Ford, Opel, Vauxhal, Mazda, Honda, Subaru, Scion, GM, Tremec, Volvo etc.
- Quick change drop gear
- Billet CNC 7075 T6 machined casings
- Straight cut gears for minimum rolling resistance
- Super finished, shot-peened gears and internals
- 5 engagement dogs for maximum fast gear change
- Weight 42kg / 92lbs Power rating: 2000 hp
Suitable For: Drift, Drag, Rally, Time Attack, Rally cross, Circuit, Hill Climb
ADVANTAGES OVER PREDECESSOR GTR RWDS:
- RS90 - Has Internal Oil Pump And Lubrication Spray. [RWDs– May Have External Electric Pump]
- 5mm More Between Shafts. RS90 – 90mm. [RWDS – 85mm.]
- 2mm Wider Dogrings. RS90 – 8.5mm. [Rwds – 6.5mm.]
- 4mm Wider Gears. RS90 – 24mm. [Rwds – 20mm]
* Following parts are included with the gearbox package, but can be bought as a spare part:
- ACAL RSS GEAR POSITION SENSOR *
- NTC1 OIL TEMPERATURE SENSOR *
- BELLHOUSING ADAPTER *
- INPUT SHAFT *
We can offer few ratio versions with many additional final drives, while your desired ratios will be considered:
| |
Option 1 |
Option 2 |
Option 3 |
Option 4 |
Option 5 |
| I |
2,500 |
2,500 |
2,500 |
2,500 |
2,500 |
| II |
1,833 |
1,833 |
1,764 |
1,764 |
1,764 |
| III |
1,474 |
1,474 |
1,364 |
1,333 |
1,286 |
| IV |
1,250 |
1,250 |
1,136 |
1,042 |
1,000 |
| V |
1,087 |
0,962 |
0,962 |
0,862 |
0,833 |
| |
Option 6 |
Option 7 |
Option 8 |
Option 9 |
| I |
2,833 |
2,833 |
2,833 |
2,833 |
| II |
2,000 |
1,833 |
1,833 |
1,764 |
| III |
1,556 |
1,364 |
1,333 |
1,286 |
| IV |
1,300 |
1,087 |
1,042 |
1,000 |
| V |
1,136 |
0,893 |
0,862 |
0,833 |
TRANSFER OR REDUCTION GEAR RATIOS:
| 1.556 |
1.250 |
1.000 |
| 1.474 |
1.190 |
0.962 |
| 1.364 |
1.136 |
0.893 |
| 1.300 |
1.087 |
0.862 |
| 1.286 |
1.042 |
0.833 |
