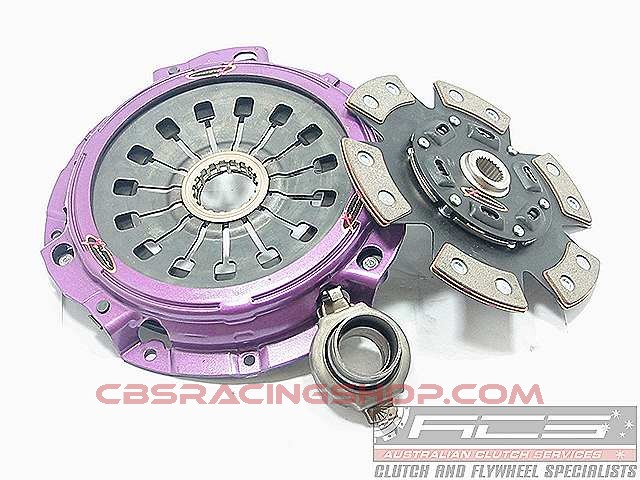

RE13B, Heavy Duty Sprung Ceramic 730Nm 975kg (40% inc.), Clutch Kit - Xtreme Performance

Manufacturer: Xtreme Clutch
SKU: KMZ24002-1B
635.62 EUR
Incl. 0% VAT (United States) | Change
635.62 EUR excl. VAT

Heavy Duty Sprung Ceramic 730Nm 975kg (40% inc.), Clutch Kit

Xtreme Performance - sprung ceramic kit /-1B
Recommended for: Motorsport Applications
Availability: Out of stock - If ordered, it will be shipped once available (3-7 days).
+ -

RE13B Heavy Duty Sprung Ceramic 730Nm 975kg (40% inc.), Clutch Kit

Xtreme Performance - sprung ceramic kit /-1B
Recommended for: Motorsport Applications

Specifications:
  • Torque capacity 730Nm
  • Clamp load 975kg 40% Increased over standard
  • Sprung Ceramic Friction Disc
  • Heavy Duty Pressure Plate
  • Kit contains everything you need for a successful installation + accessories
Clutch Disc Diameter (mm) 236
Clutch Disc Spline Count 23
Clutch Disc Spline Diameter (mm) 26.2
Torque (Nm) 730
Flywheel Step +.5mm/.020""
Design Single Plate
Stage Stage 2
Tech Bulletins
Clamp Load 975Kg (40% inc.)
Recommended for Track - Stage 2
Ring Gear Tooth Count
Additional Information
Weight [KG] 8.29

Applications:

Make
Model
Year
Variant
Engine
MAZDA RX-7 III (FD) 1992.07-2002.08 1.3 Twin Turbo (FD3S. FD1031) RE13B 1308 Petrol 176 kW 239 BHP (1992.07 - 2002.08)



STAGE 2 - CERAMIC
These kits are available with sprung or sprung / cushioned ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

STAGE 2 - CERAMIC CLUTCH KITS - SPRUNG CERAMIC - 1B
Recommended for: Motorsport Applications

The sprung ceramic range of kits has been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilize a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

Xtreme Performance
At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

What's in the Box?
Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.
Products specifications
Engine Mazda RE13B
Product Type Clutch Kits
Make Mazda
Year 1991–1997 (FD)
Model RX-7
Clutch Disc Diameter (mm) 236mm
Power Rating @ Flywheel /Nm 730 Nm
Disc Facing / Material Ceramic
Disc Quantity Single Disc
Centre Disc Sprung
