Nuke Fuel Surge Tank Kit for dual external fuel pumps

Sorry - this product is no longer available

Manufacturer: Nuke Performance
SKU: 150-01-300
605.00 EUR
Incl. 0% VAT (United States) | Change
605.00 EUR excl. VAT

Nuke Performance 3.0 liter Fuel Surge Tank is market leading with top quality combined with outstanding performance.

Availability: Out of stock - If ordered, it will be shipped once available (3-7 days).
+ -

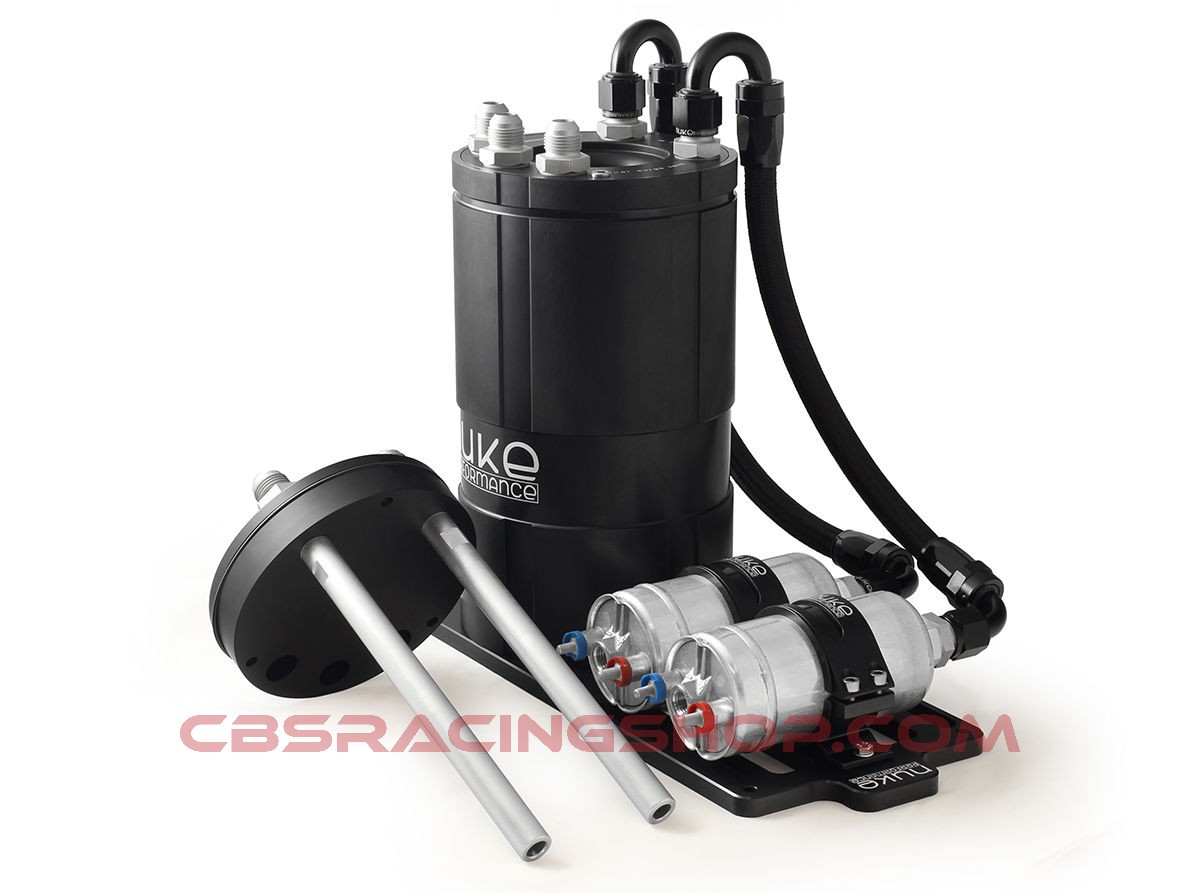

Included in the Fuel Surge Tank kit for external fuel pumps:

  • Fuel Surge Tank for external fuel pumps
  • Billet Mounting Plate
  • Fragola braided fuel hoses with Nuke Performance Hose Ends
  • Nuke Performance Universal Bracket with inserts for Bosch 044 style of fuel pumps
  • 5x 3/4 AN8 and 1x 3/4 plug fittings.
    * No fuel pumps included

--------------------------------------------

This kit combines the top quality Surge Tank with well-known external in-line fuel pumps such as Bosch 044, Deatschwerks 350il and Walbro GSL392.

Designed and manufactured to handle extreme amounts of power with the same hallmark as all of Nuke Performance products.

With Nuke Performance's Fuel Surge Tank, you minimize the risk of fuel starvation when running at low fuel level, that the system not cope with the extremely hard driving such as drifting, drag racing and track days where you can exceed 2g, which could result in fuel loss.

The FST works as a buffer so the fuel pumps are always supplied with fuel for high outputs.



Nuke Performance's Fuel Surge Tank is available in several different setups, each one designed to perform to the maximum, either with internal fuel pumps or external fuel pumps.

Use to advantage one of Nuke Performance's kits which we adapted for some of the most widely used fuel pumps on the market, fuel pumps that match the high quality we seek.
With these kits the fuel is delivered with minimum flow loss or starvation.

Delivered with 5x 3/4 AN8 fittings for all the top cover connections and 1x 3/4 plug if you choose to use it for a single fuel pump. 3/4 AN6-AN10 is optional and are sold separately.

Designed to stand up to the destructive properties of alcohol fuels, including methanol and ethanol.

For use on turbo-charged, super-charged and naturally aspirated engine applications.

--------------------------------

Technical information:

• CNC manufactured from aluminium alloy 6063.
• Stainless steel bolts for long-lasting.
• Holds a volume of approximately 3 liters.
• Delivered with 5x 3/4 AN8 and 1x 3/4 plug fittings.
• 3/4 UNF Ports, available to AN-6, AN-8 or AN-10 line.
• Fuel pumps are not included
• Laser-engraved.

Measurements :
Height: 270 mm
Length: 343 mm
Depth: 148 mm
Weight: 3857 g

* All measurements excluding the supplied fittings.

Products specifications
Product Type Tanks and Reservoirs, Fuel System
Model Z4, Elise, GT86, MX5, S3, IS, Starlet, G35, Crown, Silvia, RX8, MR2, 370Z, 5-Series, Aristo, Civic, Accord, S13, RX-7, Altezza, BRZ, Forte, GT-R, Golf R, Q50, Yaris, 6, Prelude, M3, Supra, Cresta, Civic Type-R, tC, Sequoia, S6, Mustang, Legacy, Chaser, Celsior, Crown Majesta, Z3, Aurion, S15, Corolla, Camry, RC, Yaris GR, X5, 1-Series, Atenza, Mark X, S14, Golf, 3, ES, LS, S4, Eclipse, Cressida, Tundra, 350Z, 300ZX, RS4, Q45, Hilux, 3-Series, CX-5, Skyline, G37, Prius, 7-series, Mazdaspeed 3, 2, Celica, Soarer, Impreza, S2000, S2, 996 / Carrera, Focus, Integra, CT, Corvette, A4, Forester, Land Cruiser, SC, Lancer, Mark 2, GS, Corolla GR, GR86
Year 1986-1989, 1994–1995 (Evo 2/II), 2005- (MK5 R32), 2000-2005 (7th/ES/EP/EM), 1999-2005 (GXE10), 2013-2018 (BM/BN), 2009-2011 (WRX Sedan), 2013-2017 (KE), 1968-1972 (1st/N10), 1991-2002 (E100/7th), 1983–1989 (Z31), 1988-1991 (4th/EC/ED/EE/EF), 2015-Present (ND), 2005-2013 (XP90/2nd), 2009-2019 (X130), 2015-present (6th GEN), 1992-1997, 2005-2011 (S190), 2014-2019 (BN,BS; 6th GEN), 2007-2014 (DE/DH), 2011-2015 (L10), 1999–2007 (ZW30 - Spyder), 1987-1992 (E90/6th), 1984-1987 (3rd/AH/AJ/AK/AT), 2004-2006 (turbo), 1999–2001 (Evo 6/VI), 1995-1999 (2nd GEN), 1986−1991 (CV20/SV21/VZV21), 1988-1997 (5th/N80/N90/N100/N110), 2000-2006 (E120, E130/9th), 2002-2007 (DY), 2012-present (GJ1/GL), 1981–1985 (A60), 1994-1997, 1999-2000, E46 (2000–2006), E30 (1986–1991), 2013 - present (XE30), 2004-2009 (X120), 1997-2005 (S160/161), 2007 - present (R35), 2007-2013, 2007-2016 (Evo 10/X), 2004-2008 (MK5/A5/Typ 1K ), 1999-2005 (NB), 1996-2001 (GX10*,JZX10*,LX100), 1993–1999 (T200), 1990-1997 (JZS147), 1997-2004 (JZS16*), 2007-2010 (3rd/FN2/FD2), 1979-1993 (3rd GEN), 1993-1999 (BD,BG,BK; 2nd GEN), 2003-2009 (BL,BP; 4th GEN), 1993-1997 (S147), 1991–2000 (Z30/SC300/400), 2003-2006 (sedan), 2003-2007 (coupe), 2014- (MK7), 2001–2003 (Evo 7/VII), 1991–1995 (5th/EG/EH/EJ), 1987-1991 (S130), 2005-2015 (7th/AN10/AN20/AN30), E53 (2000-2006), 2019-present (BP), 2007-2009 (BK), 2007-2011 (CJ), 1994–2000 (400/UCF20/21), 1989–1993 (T180), 1989–1994 (R32), 2005-2013 (C6), 2005-2014 (5th GEN), 1989-1993 (BC,BF,BJ; 1st GEN), 2014-2018 (SJ; 4th GEN), 2001-2006 (STi - SF and SG; 2GEN), 2015-present (4th), 1980-1983 (2nd/SL/SS/SR/STVC/WD), 2004-2010 (AT10), 2002-2008 (SG; 2nd GEN), 1997-2002 (SF; 1st GEN), 1984–1987 (AE86), 1986–1993 (A70/MK3), 1989-1995 (P80/EP82), 1978-1983 (3rd/N30/N40), 1983-1988 (4th/N50/N60/N70), 1997-2004 (C5), 2015-2018 (W50), 2020-present (XP210/GXPA16), 2009-2015 (W30), E39 (2000-2004), E65/E66 (2002-2005), 2003-2009 (BK), 1996-1999 (P90/EP91), 2010- (MK6 R20), 1997-2004 (MK4/A4/Typ 1J), 2003–2005 (Evo 8/VIII), 1978–1981 (A40/A50), 1989-1994 (400/UCF10), 2007-2014 (WRX Hatch), 1990-1993, 2009-2011, 1989–1991 (ES250/V20/1), 1998-2007 (J100), 2015-present (8th/AN120/AN130), 2002-2008 (GG1), 2007-2012 (GH1/GH2), 2013-2018 (E170/11th), 2005-2013 (XE20), 1991–1997 (FD), 2009-2020 (Z34), 2009-2013 (MK6/A6/Typ 5K), 1996–1998 (Evo 4/IV), 1996-2000 (GX10*,JZX10*,LX100), 2003-2008, 2014-2019 (WRX FA20 S), 2011-2015 (WRX Sedan), 1993-1997, 1998–2005 (XE10/IS200/300), 2001-2010 (Z40/SC430), 1990-2000 (Z3), 2000-2007 (GX11*,JZX11*), 1985–1989 (T160), 1973-1979 (1st/SB1/SG/SE/VB), 1999-2003 (AP1), 2005-2011 (Mk2), 1998-2004 (EB,BH,BT; 3rd GEN), 2009-2013 (SH; 3rd GEN), 2020-present (BW,BT; 7th GEN), 2014-2019, 1992–1996 (JZX90), 1997-2000 (1st/EK9), 2003-2009 (AP2), 1997-2004, 1990-1994 (1st GEN), 2018-present (Mk4), 2010-2016 (AT20), 2002-2006, E36/7/8 (1995-2002), E89 (2009-2016), 1999-2005 (XP10/1st), 1983-1987 (E80/5th), 1996-2001 (Series 1), 2011-2021 (Series 3), 2019-present (A90/GR), 2017-present (KF), 1999-2007 (GS171,JKS175,JZS17*,UZS17*), 1992-1996 (JZX90), 1985-1992 (FC), 1989-1997 (NA/Miata), 1998-1999 (Evo 5/V), 1986–1991 (Z20), 200h (+2011), 1995–1996 (Evo 3/III), 2016-present (10th), 2020-today (XP210/4th), 1997-2005 (6th/N140/N150/N160/N170), 1990-1997 (J80), 1972-1978 (2nd/N20), 2001-2011 (Series 2), 2014-2019 (C7), 2018-today (W51), E46 (2000 - 2006), 2010-2013 (BL), 1993-2002 (A80/MK4), 1996-2001(GX10*,JZX10*,LX100,SX100), 2000–2006 (XF30), 1999–2006 (T230), 2018- (E210/12th), 1995-2002 (E110/8th), 2014- (MK7/A7/Typ 5G), 2005-2015 (NC), 2003-2009 (Z33), 1996-2000 (6th/EJ/EK/EM), F30/F31/F34/F35 (2011-2019), 1999–2002 (R34), 2011-2013 (WRX Hatch), 2006-2013 (E140,E150/10th), 2001-2005 (2nd/EP3), 2012-2015 (9th/FB/FK), 1998-2004 (Mk1), 1989-2006, 1994–2001, E85/E86 (2002-2008), 2000-2006 (430/UCF30/31), 2015–present (XC10), E90/E92/E93 (2007–2013), E81/E82/E87/E88 (2004–2013), 2003- (MK4 R32), 1992–1994 (Evo 1/I), 2014–present, 2005–2007 (Evo 9/IX), 2006-2011 (8th/FK/FN/FD/FA), 2011-2018 (Mk3), 1994-2004 (4th GEN), 2009-2014 (BM,BR; 5th GEN), 2019-present (SK; 5th GEN), G29 (2018-present), 1993–1998 (R33), 2006-2017 (460/UCF40), 2002-2007 (WRX/STI Wi), 2015-2017 (WRX FA20 S), 2011-2018 (WRX Sedan), E36 (1992–1999), 1989–2000 (Z32), 1988-1993, 1989–1999 (SW20), 1984–1989 (AW10), 2011-2020 (XP130/3rd), 1984-1989 (P70/EP71), 2014-present (DJ/DL), 2023-present (GZEA14)
Make Infiniti, Mercedes, Hyundai, Mini, Lotus, Porsche, Opel, Kia, BMW, Volvo, Chevrolet, Volkswagen, Audi, Mitsubishi, Subaru, Saab, Toyota, Lexus, Mazda, Scion, Nissan, Honda, Ford
