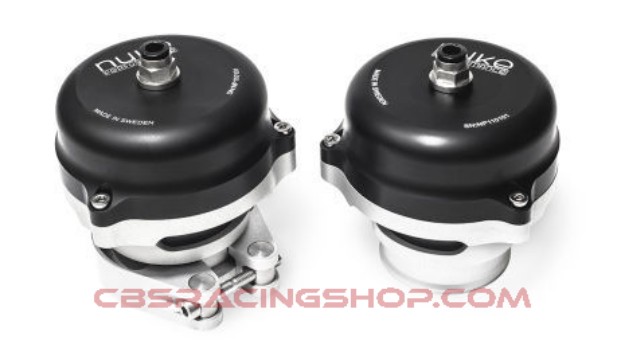

Nuke Blow Off Valve 50 mm V-Band

Sorry - this product is no longer available

Manufacturer: Nuke Performance
SKU: 900-02-201
289.19 EUR
Incl. 21% VAT (Netherlands) | Change
239.00 EUR excl. VAT

50 mm piston valve with the highest flow capacity available. When it is necessary to be able to rely on the installation and function.

Availability: Out of stock - If ordered, it will be shipped once available (3-7 days).
+ -

50 mm piston valve with the highest flow capacity available. When it is necessary to be able to rely on the installation and function.

Designed with an oversized 50 mm valve; we believe this is the largest valve available with the highest flow capacity. The body and all internal components are CNC-machined from 6082 aluminum alloy, anodized for a long-lasting, corrosion-free appearance.

Designed and manufactured to handle extreme amounts of power with the same hallmark as all of Nuke Performance performance products.

The Blow off Valve comes with one quick-connect pneufit fitting, with oversized 1/4 connection for quick and actuator response. If needed, barb fittings are available.

Spring Pressure Chart:
0,50 - 0,75 bar / 7,25 - 10,9 psi : Additional BLACK SPRING
0,35 - 0,50 bar / 5,07 - 7,25 psi : Stock / included BLUE SPRING
0,00 - 0,35 bar / 0,00 - 5,07 psi : Additional WHITE SPRING

** Measure engine vacuum at idle and with engine at operating temperature.

Available both with V-Band or silicon hose attachment. Nuke Performance unique V-Band design to enable perfect fitment.
The V-Band version is complete with clamp and welding flange.


Technical information :
• CNC manufactured from aluminum alloy 6082.
• The valve seal utilizes a Viton O-ring that is glued in place to prevent the possibility of sticking to the seat and pulling out.
• V-Band clamp and welding flange included.
• Delivered with 1x 1/4 G quick connect pneufit fitting for 6mm tubing.
• Delivered with "blue spring" : 0,35 - 0,50 bar / 5,07 - 7,25 psi.
• Springs are available in three different setups: White, Blue, Black.
• Laser-engraved.


Measurements :
Height: 98 mm
Diameter: 88 mm
Weight: 399 g

* All measurements including the supplied fittings.

Quantity:
1pc

Products specifications
Product Type Blow Off Valves, Turbos & Forced Induction
Make Toyota, Mazda, Lexus, Nissan, Honda, Ford, Scion, Infiniti, Lotus, Mercedes, Mini, Porsche, Hyundai, Kia, Opel, BMW, Volvo, Chevrolet, Volkswagen, Audi, Mitsubishi, Subaru, Saab
Year 2018-today (W51), 1972-1978 (2nd/N20), 2006-2013 (E140,E150/10th), 1994–2001, 1995-2002 (E110/8th), E46 (2000 - 2006), 2001-2005 (2nd/EP3), 2001-2011 (Series 2), 1989-2006, 1999–2006 (T230), 1998-2004 (Mk1), 1996-2001(GX10*,JZX10*,LX100,SX100), 2003-2009 (Z33), 1993-2002 (A80/MK4), F30/F31/F34/F35 (2011-2019), E85/E86 (2002-2008), 2011-2013 (WRX Hatch), 2020-today (XP210/4th), 1990-1997 (J80), 2000–2006 (XF30), 2014-2019 (C7), 2012-2015 (9th/FB/FK), 2018- (E210/12th), 2010-2013 (BL), 1999–2002 (R34), 1997-2005 (6th/N140/N150/N160/N170), 2005-2015 (NC), 1996-2000 (6th/EJ/EK/EM), 1984–1989 (AW10), 2011-2020 (XP130/3rd), 1984-1989 (P70/EP71), 2014-present (DJ/DL), 1993–1998 (R33), 2006-2017 (460/UCF40), 2002-2007 (WRX/STI Wi), 2015-2017 (WRX FA20 S), 2011-2018 (WRX Sedan), E36 (1992–1999), 1989–2000 (Z32), 2000-2006 (430/UCF30/31), 2015–present (XC10), E90/E92/E93 (2007–2013), E81/E82/E87/E88 (2004–2013), 2003- (MK4 R32), 1992–1994 (Evo 1/I), 2014- (MK7/A7/Typ 5G), 2014–present, 2005–2007 (Evo 9/IX), 2006-2011 (8th/FK/FN/FD/FA), 1988-1993, 1989–1999 (SW20), 2011-2018 (Mk3), 1994-2004 (4th GEN), 2019-present (SK; 5th GEN), G29 (2018-present), 2005-2011 (S190), 1991-2002 (E100/7th), 1999–2001 (Evo 6/VI), 1994–1995 (Evo 2/II), 2015-Present (ND), 2005- (MK5 R32), 1984-1987 (3rd/AH/AJ/AK/AT), 1999–2007 (ZW30 - Spyder), 2005-2013 (XP90/2nd), 1987-1992 (E90/6th), 1968-1972 (1st/N10), 2009-2019 (X130), 2013-2018 (BM/BN), 2007-2014 (DE/DH), 2013-2017 (KE), 1992-1997, 2009-2011 (WRX Sedan), 1983–1989 (Z31), 2011-2015 (L10), 1999-2005 (GXE10), 1986−1991 (CV20/SV21/VZV21), 1988-1991 (4th/EC/ED/EE/EF), 2000-2005 (7th/ES/EP/EM), 2004-2006 (turbo), 1995-1999 (2nd GEN), 2015-present (6th GEN), 1986-1989, 2014-2019 (BN,BS; 6th GEN), 2007-2010 (3rd/FN2/FD2), 1979-1993 (3rd GEN), 1993-1999 (BD,BG,BK; 2nd GEN), 2003-2009 (BL,BP; 4th GEN), 1996-2001 (GX10*,JZX10*,LX100), 1993–1999 (T200), 1990-1997 (JZS147), 1997-2004 (JZS16*), 1988-1997 (5th/N80/N90/N100/N110), 2000-2006 (E120, E130/9th), 2002-2007 (DY), 2012-present (GJ1/GL), 2004-2009 (X120), 1997-2005 (S160/161), 2007 - present (R35), 2007-2013, 2007-2016 (Evo 10/X), 2004-2008 (MK5/A5/Typ 1K ), 1999-2005 (NB), 1981–1985 (A60), 1994-1997, 1999-2000, E46 (2000–2006), E30 (1986–1991), 2013 - present (XE30), 1987-1991 (S130), 2005-2015 (7th/AN10/AN20/AN30), E53 (2000-2006), 2019-present (BP), 2007-2009 (BK), 1993-1997 (S147), 1991–2000 (Z30/SC300/400), 2003-2006 (sedan), 2003-2007 (coupe), 2014- (MK7), 2001–2003 (Evo 7/VII), 1991–1995 (5th/EG/EH/EJ), 2016-present (10th), 2007-2011 (CJ), 1994–2000 (400/UCF20/21), 1989–1993 (T180), 1989–1994 (R32), 2005-2013 (C6), 2005-2014 (5th GEN), 1989-1993 (BC,BF,BJ; 1st GEN), 2014-2018 (SJ; 4th GEN), 2001-2006 (STi - SF and SG; 2GEN), 1978–1981 (A40/A50), 1989-1994 (400/UCF10), 2007-2014 (WRX Hatch), 1990-1993, 2009-2011, 1989–1991 (ES250/V20/1), 2015-present (4th), 1980-1983 (2nd/SL/SS/SR/STVC/WD), 2004-2010 (AT10), 2002-2008 (SG; 2nd GEN), 1997-2002 (SF; 1st GEN), 1989-1995 (P80/EP82), 1978-1983 (3rd/N30/N40), 1983-1988 (4th/N50/N60/N70), 1997-2004 (C5), 2015-2018 (W50), 2020-present (XP210/GXPA16), 2009-2015 (W30), E39 (2000-2004), E65/E66 (2002-2005), 2003-2009 (BK), 1984–1987 (AE86), 1986–1993 (A70/MK3), 1996-1999 (P90/EP91), 2010- (MK6 R20), 1997-2004 (MK4/A4/Typ 1J), 2003–2005 (Evo 8/VIII), 1998-2007 (J100), 2015-present (8th/AN120/AN130), 2002-2008 (GG1), 2007-2012 (GH1/GH2), 1990-2000 (Z3), 2000-2007 (GX11*,JZX11*), 1985–1989 (T160), 2005-2013 (XE20), 1991–1997 (FD), 2009-2020 (Z34), 2009-2013 (MK6/A6/Typ 5K), 1996–1998 (Evo 4/IV), 1996-2000 (GX10*,JZX10*,LX100), 2003-2008, 2014-2019 (WRX FA20 S), 1993-1997, 1998–2005 (XE10/IS200/300), 2001-2010 (Z40/SC430), 2013-2018 (E170/11th), 1973-1979 (1st/SB1/SG/SE/VB), 1999-2003 (AP1), 2005-2011 (Mk2), 1998-2004 (EB,BH,BT; 3rd GEN), 2009-2014 (BM,BR; 5th GEN), 2009-2013 (SH; 3rd GEN), 2020-present (BW,BT; 7th GEN), 1992-1996 (JZX90), 1985-1992 (FC), 1989-1997 (NA/Miata), 1998-1999 (Evo 5/V), 1986–1991 (Z20), 200h (+2011), 1995–1996 (Evo 3/III), 1997-2000 (1st/EK9), 2003-2009 (AP2), 1997-2004, 1990-1994 (1st GEN), 2018-present (Mk4), 2010-2016 (AT20), 2002-2006, E36/7/8 (1995-2002), 2014-2019, 2011-2015 (WRX Sedan), 1992–1996 (JZX90), 1999-2007 (GS171,JKS175,JZS17*,UZS17*), E89 (2009-2016), 1999-2005 (XP10/1st), 1983-1987 (E80/5th), 1996-2001 (Series 1), 2011-2021 (Series 3), 2019-present (A90/GR), 2017-present (KF), 2023-present (GZEA14)
Model 2, S2, S2000, Impreza, 7-series, Celica, Mazdaspeed 3, Prius, Soarer, Integra, Focus, 996 / Carrera, CT, Lancer, Mark 2, GS, Corvette, A4, Forester, Land Cruiser, G35, Starlet, Elise, RX8, MX5, 370Z, Silvia, MR2, Crown, IS, GT86, S3, Z4, Forte, Altezza, BRZ, 5-Series, S13, RX-7, Aristo, Civic, Accord, Yaris, 6, GT-R, Golf R, Q50, Prelude, M3, Supra, Civic Type-R, tC, Sequoia, Corolla, Camry, RC, S6, Mustang, Legacy, Z3, Aurion, Chaser, Celsior, Crown Majesta, Cresta, S15, Yaris GR, X5, 1-Series, Atenza, ES, SC, LS, Mark X, S14, Golf, 3, S4, Eclipse, G37, RS4, Q45, Cressida, Tundra, 350Z, 300ZX, Skyline, Hilux, 3-Series, CX-5, Corolla GR, GR86
