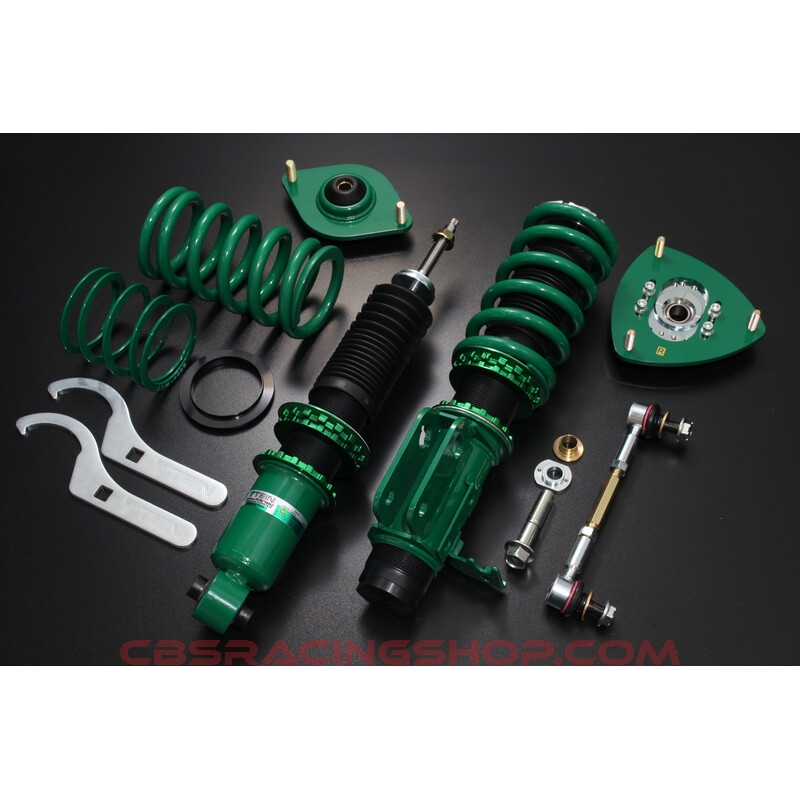

Tein Mono Racing Coilovers Toyota GR86 ZN8
- Spring Rate - Front: 10kg Rear: 10kg
- Adjustable camber and caster top mounts
- Spring rate options
- EDFC compatible
The TEIN Mono Racing kit has been developed for drivers who frequently drive at race tracks. Based on the settings of the high-end Super Racing model from TEIN plus a wealth of data gained through participating in various motorsports, the TEIN Mono Racing spring rates and damping are best suited for sports driving.
Made in Japan, every TEIN kit application is test fitted and road tested by highly trained suspension engineers to ensure the best possible balance between comfort and performance on the road.
- Kit Type: Tein Mono Racing
- Part Number: VSAEA-K1LS4
- Car Make: Toyota
- Car Model: GR86
- Spring Rate - Front: 1kg Rear: 1kg
KIT NOTES
REAR: interior needs to be cut or removed, to avoid interference. camber adjustment washers with different offsets are available (sold separately) . from the positive angle set with the included washers, replace the washers with optional washers SPS12-R16100-25 to set the angle further positive, and with SPS12-R16100-05 to set to negative direction. from the negative angle set with the included washers, replace the washers with optional washers SPS12-R16100-05 to set the angle further negative, and with SPS12-R16100-25 to set to positive direction (both sold separately) . 2 eccentric washers per vehicle are required. front springs: selected from 8.10, 12K. rear springs: selected from 8.10, 12K. us&uk spec included front: 10K/rear: 10K. optional springs- front: 8.12K/rear: 8.12K. price includes springs.
Product Features:
- Monotube tube damper design
- Adjustable camber and caster top mounts
- 16-stage damping adjustment
- Spring rate options
- Full length ride height adjustable system
- EDFC compatibility for in-car damping adjustment
Note: The product images shown are for illustration purposes only and may not be an exact representation of the product.
Fits Vehicles
- Toyota GR86 ZN8 22+ RWD
- Toyota GR86 ZN8 RZ SZ 21+ RWD Rec. ride height drop (25 to 45 front, 30 to 50mm rear)
