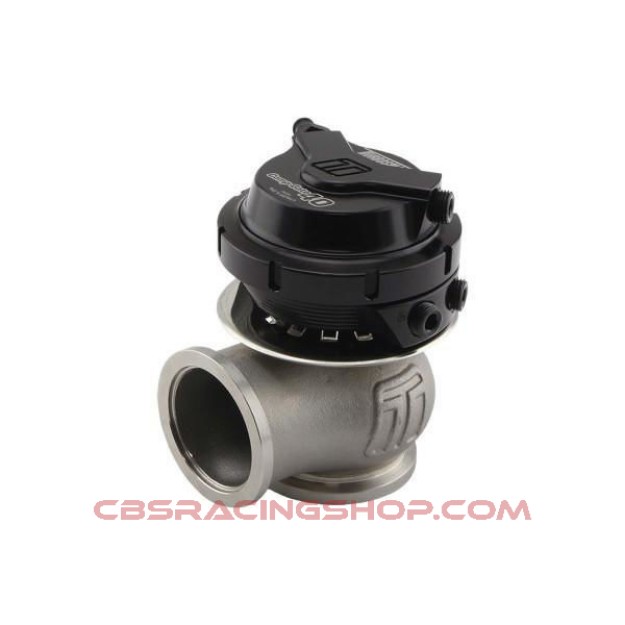

Gen-V WG40 Comp-Gate40 14psi Sleeper
The GenV WG40 CompGate40 External Wastegate is a Motorsport proven, cost-effective external wastegate – The largest in the Turbosmart GenV range and the Highest Flowing Wastegate in the World.
The GenV provides extensive user customizability, world-leading extended thermal performance, fatigue resistance and best in class flow performance for optimum control and longevity.
The GenV External Wastegate from Turbosmart was a ground-up rework of a classic and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management, the GenV range has more features, options and performance than any other gate like it.
A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, strap-type V-band clamps, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs.
Available In
Black, Blue, Red and Purple
Wastegate Position Sensor Version & Upgrade
Compressed Gas (ex: Co2) Version
Motorsport Version (CFD driven Heatsink design)
HP (High-Pressure Version) Up to 50psi
Features
Class-Leading, Thermal Performance
Class-Leading, CFD & Bench Validated Flow Performance
Class-Leading Fatigue Resistance
Nitronic 60 Valve Guide & High Temp 347 SS Body
17/7 PH Stainless Steel Springs
Liquid Actuator Cooling Option
Strap Type V-band clamps
SUPPLIED WITH
GenV Wastegate unit
All Springs Included in Box
Wastegate Pre-fitted as Per Description
GenV SS316 Valve seat
GenV V-Band Clamps
GenV Inlet & Outlet Weld Flanges
Mounting Bolts and Nuts
Collar tool (master/slave)
3, 5, 7, 14 psi spring kit (1x spring installed)
4 x 1/8” NPT plugs (1x installed)
2 x 1/8” NPT nipples
Turbosmart Decal
