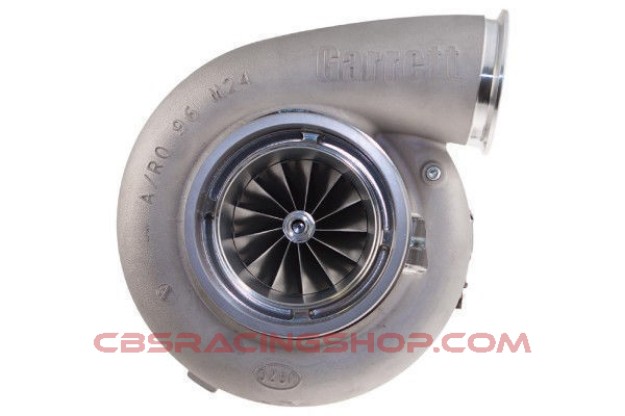

Garrett G57-2250 94mm Super Core 880547-5009S

Manufacturer: Garrett
SKU: 880547-5009S
3315.99 EUR
Incl. 0% VAT (United States) | Change
3315.99 EUR excl. VAT

Horsepower: 1750 - 2250 HP
Displacement: 3.0 - 12.0 L

Rotation: Standard (Clockwise)

Availability: Out of stock - If ordered, it will be shipped once available (3-7 days).
+ -

Horsepower: 1750 - 2250 HP
Displacement: 3.0 - 12.0 L

  • G-Series Aero forged milled compressor wheel
  • High-Flow Compressor Housing with the integrated speed sensor port
  • Rotation: Standard (Clockwise)
  • 16 mm Dual ceramic ball bearing cartridges
  • High-Flow Inconel Turbine Wheel (+28 % increased flow compared to GTX55 Gen II)
  • Air- and Oil Cooled
  • External Wastegate
Compressor side:
Inducer ø
94.00mm
Exducer ø
133.00mm
Trim
50
A/R
0.96
Turbine side:
Inducer ø
118.00mm
Exducer ø
112.00mm
Trim
90
A/R
--

 ----------------------------------------------------------------

Garrett G-Series Turbocharger

The latest generation Motorsport Turbocharger is the Garrett G-Series. Highest performance and a compact design paired with state-of-the-art technology. Garrett G-Series turbocharger is available with standard rotation as well as in reverse direction. The G25 turbochargers are fixed at 1050 ° C and are available with either internal or external wastegate.

Products specifications
Turbo (Series) Garrett G
Turbo (Sizes) G57, G-Series Super Cores
Product Type Turbocharger
