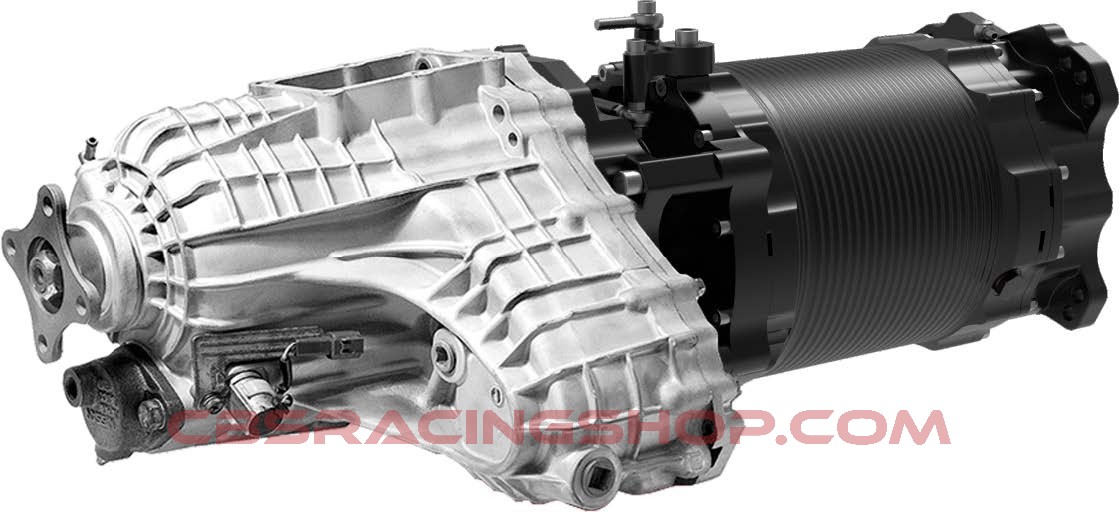

4WD NISSAN GTR 5 SPEED RS90 SEQUENTIAL GEARBOX - Samsonas

Samsonas - Nissan GTR (RS90) SEQUENTIAL 5 speed. (without transfer case)

• Torque rating up to 2000 Nm, depending on the options
• Special steel X300 clutch shaft
• Designed for Nissan GTR R32, R33, R34
• Billet CNC 7075 T6 machined casings
• Straight cut gears for minimum rolling resistance
• Super finished, shot-peened gears and internals
• 5 engagement dogs for maximum fast gear change
• Weight 42kg / 92lbs.
• Power rating: 2000 hp

Suitable For: Drag, Rally, Time Attack ,Rallycross, Circuit, Hill Climb

ADVANTAGES OVER PREDECESSOR GTR RWDS:

• RS90 - Has Internal Oil Pump And Lubrication Spray. [DSRW– May Have External Electric Pump]
• 5Mm More Between Shafts. RS90 – 90mm. [RWDS – 85mm.]
• 2mm Wider Dogrings. RS90 – 8.5mm. [Rwds – 6.5mm.]
• 4mm Wider Gears. RS90 – 24mm. [Rwds – 20mm]

* Following parts are included with the gearbox package, but can be bought as a spare part:

• ACAL RSS GEAR POSITION SENSOR *
• NTC1 OIL TEMPERATURE SENSOR *
• BELLHOUSING ADAPTER *
• INPUT SHAFT *

TRANSFER OR REDUCTION GEAR RATIOS:
