4A-GEL, Heavy Duty Organic 260Nm 620kg (30% inc) - Xtreme Performance

Manufacturer: Xtreme Clutch
SKU: KTY22006-1A
293.82 EUR
Incl. 0% VAT (United States) | Change
293.82 EUR excl. VAT

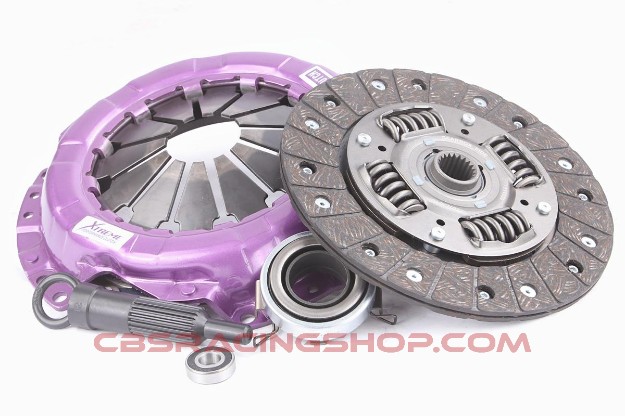

4A-GEL, Heavy Duty Organic 260Nm 620kg (30% inc)

Xtreme Performance - sprung organic kit /-1A
Recommended for: Street use in vehicles with minor engine modifications.
Availability: Out of stock - If ordered, it will be shipped once available (3-7 days).
+ -

4A-GEL, Heavy Duty Organic 260Nm 620kg (30% inc)

Xtreme Performance - sprung organic kit /-1A
Recommended for: Street use in vehicles with minor engine modifications.

Flywheel Step (mm) +0.5
Clutch Disc Diameter (mm) 215
Clutch Disc Spline Count 21
Clutch Disc Spline Diameter (mm) 23.8
Disc Type Sprung
Friction Material Organic
Stage 1
Recommended Use Street
Clamping Force % Increase 40%
Torque (Nm) Inc FOS 260
Torque (ftlbs) Inc FOS 190
Spigot Bush/Bearing Included Yes
Aligning Tool Included Yes
Spline Grease Included Yes
Transport Weight (kg) 6.3


SPECIFICATIONS:

  • Torque capacity 260Nm
  • Clamp load 620kg 30% Increased over standard
  • Organic Friction Discs
  • Heavy Duty Pressure Plate
  • Kit contains everything you need for a successful installation + accessories


APPLICATIONS:

Make
Model
Year
Variant
Engine
TOYOTA CARINA IV sedan 1983.10-1987.11 1.6 (AT151_) 4A-LC 1587 Petrol 55 kW 75 BHP (1983.10 - 1987.11)
TOYOTA COROLLA 1983.06-1987.08 1.6 (AE82) 4A-L 1587 Petrol 62 kW 84 BHP (1983.06 - 1987.08)
TOYOTA COROLLA Liftback 1983.06-1987.08 1.6 (AE82) 4A-L 1587 Petrol 62 kW 84 BHP (1983.06 - 1987.08)
TOYOTA COROLLA Liftback 1985.08-1987.08 1.6 (AE82) 4A-LC 1587 Petrol 54 kW 73 BHP (1985.08 - 1987.08)
TOYOTA COROLLA Liftback 1987.08-1992.04 1.3 i (EE90) 2E, 2E-E 1296 Petrol 55 kW 75 BHP (1987.08 - 1992.04)
TOYOTA COROLLA Station Wagon 1989.06-1992.06 1.3 (EE90) 2E 1296 Petrol 55 kW 75 BHP (1989.06 - 1992.06)
TOYOTA MR2 I 1984.06-1989.11 1.6 16V (AW11) 4A-GEL 1587 Petrol 96 kW 131 BHP (1984.06 - 1989.11)
TOYOTA MR2 I 1984.11-1989.12 1.6 (AW11) 4A-GELC 1587 Petrol 80 kW 109 BHP (1984.11 - 1989.12)
TOYOTA MR2 I 1984.11-1990.06 1.6 16V (AW11) 4A-GEL 1587 Petrol 91 kW 124 BHP (1984.11 - 1990.06)
TOYOTA MR2 I 1984.11-1990.06 1.6 16V (AW11) 4A-GELC 1587 Petrol 85 kW 116 BHP (1984.11 - 1990.06)
TOYOTA STARLET 1986.12-1989.12 1.5 D (NP70L) 1N 1453 Diesel 40 kW 54 BHP (1986.12 - 1989.12)



Stage 1 - Organic Clutch Kits - SPRUNG ORGANIC - 1A

Recommended for: Street use in vehicles with minor engine modifications.
Sprung organic clutch kits offer exceptional driveability for vehicles used daily but also have performance modifications. The sprung organic disc offers improved dampening which reduces the shock loading on the transmission.

Xtreme Performance
At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

What's in the Box?
Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.
