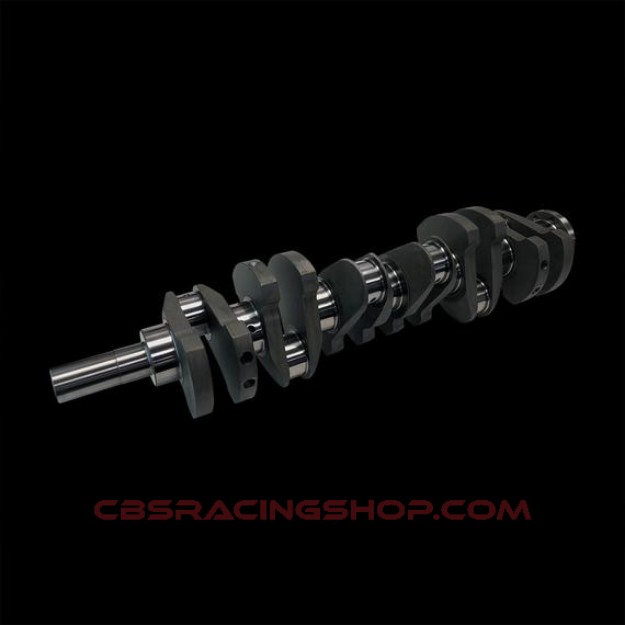

2JZGTE Crankshafts
For more info, read below:
BC crankshafts are made from the finest, aerospace grade 4340 steel billet material. CNC machined on state of the art, 5 axis Mazak Integrex 300-IV CNC machines to exacting tolerances (.0001"). Every crankshaft features large radius journals that add rigidity for high horsepower, high boost, high rpm applications. Gun drilled, CNC ground oil holes feature a smooth surface for extra oiling, tear dropped for added oil scoop, cross drilled for priority main feeding to the rods and micro polished to a mirror finish for optimum bearing lubricity. All cranks are stress relieved, shot peened, magna flux inspected and nitrided (multi step heat treatment) for ultimate performance. Fully profiled counterweights are designed for reduced windage through the crankcase creating less oil resistance for better rpm potential.
Part #
Description #
Stroke
Crank Pin
Main
BC5309
CRANKSHAFT - Toyota 2JZGTE/2JZGE, 4340 Billet (60 lbs)
94mm
52mm
62mm
BC5309LW
CRANKSHAFT - Lightweight Toyota 2JZGTE/2JZGE, 4340 Billet (48 lbs)
BC5309-86
86mm
47.95mm
BC5309LW-86
CRANKSHAFT - Lightweight Toyota 2JZGTE/2JZGE, 4340 Billet (47 lbs)
BC5309LW-96
96mm
At CBS Racing, happy and satisfied customers are our top priority. We do not hide behind supplier or manufacturer warranty statements like: "No warranty on racing products". This is not okay! There must be a guarantee and a warranty on all products sold - they must work and fit your car as advertised.We take great care in selecting what we sell and what we install on our build- and customer cars. So you can rest assured we got your back, and we will not leave you stranded with a bad or broken part.At CBS Racing, we strive to be the first shop of choice for our fellow car enthusiasts!And we plan to do that by taking care of our customers the way they deserve and deliver 110% service, always!Thanks for trusting us!
2JZGTE Oil Pump Drive Gear
Crankshaft oil pump drive gear, billet steel gear replaces OEM cast gear
