272/278 | 1JZ-GTE VVTi Cams - Kelford Cams

Manufacturer: Kelford Camshafts
SKU: KC-V229-D
885.43 EUR
Incl. 0% VAT (United States) | Change
885.43 EUR excl. VAT

272°/278° | 9.95mm/9.95mm Valve Lift

Availability: Out of stock - If ordered, it will be shipped once available (1-2 weeks).
+ -

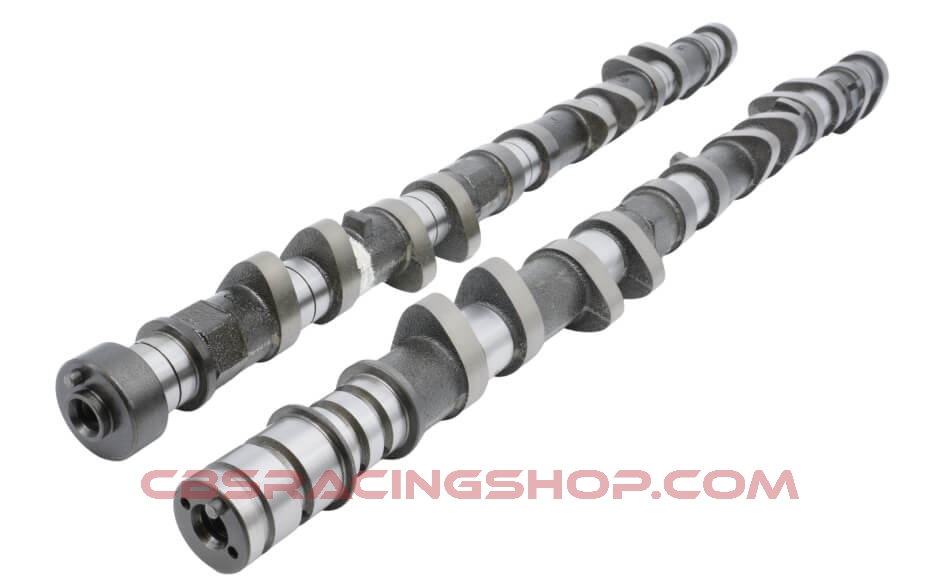

Toyota 1JZ-GTE VVTi Camshafts

272°/278° | 9.95mm/9.95mm Valve Lift

1JZ-GTE racing camshaft. These are our most popular cams for a vast range of motorsport applications. Ultimate throttle response with VVT-i. More top end and maximum power than V229-C. Suits single 64mm-76mm turbo. Great with E85.

  • Kelford Cams recommend valve spring KVS109-1JZ.
Engine Make: Engine Model: Part Number:
TOYOTA 1JZ VVTi V229-D Camshaft
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.25mm Set COLD at the CAM

Cam Lift:   Intake: 10.20mm Exhaust: 10.20mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 9.95mm Exhaust: 9.95mm
Advertised Duration @ 0.10mm Intake: 272 Exhaust: 278
Duration @ 1.00mm VALVE LIFT Intake: 236 Exhaust: 240
Timing @ 1.00mm VALVE LIFT IVO:   EVO: 60 BBDC
    IVC:   EVC: 0 TDC
Suggested Centre Lines:   Intake: Vari Exhaust: 120
VALVE Lift @ TDC Intake:   Exhaust: 0.94
