272/278 | 1JZ-GTE Non VVTi - Kelford Cams

Manufacturer: Kelford Camshafts
SKU: KC-229-D
901.48 EUR
Incl. 0% VAT (United States) | Change
901.48 EUR excl. VAT

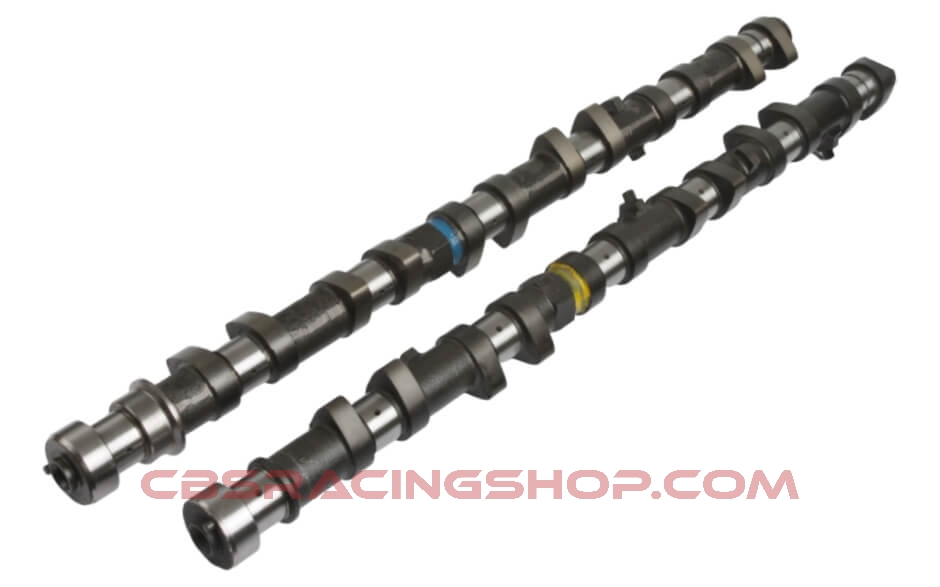

Toyota 1JZ-GTE Performance Cam

272/278 Degrees advertised duration. 9.95mm/9.95mm lift.

Availability: Out of stock - If ordered, it will be shipped once available (1-2 weeks).
+ -

Toyota 1JZ High Performance Camshafts

272°/278° | 9.95mm/9.95mm Valve Lift

1JZ-GTE Racing Camshaft. These are our most popular cams for a vast range of motorsport applications. More top end and maximum power than 229-C. Suits single 64mm-76mm turbo. Great with E85 fuel.

  • Kelford Cams recommend valve spring KVS109-1JZ.

Non-VVTi

Engine Make: Engine Model: Part Number:
TOYOTA 1JZ TURBO 229-D
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.25mm Set COLD at the CAM

Cam Lift:   Intake: 10.20mm Exhaust: 10.20mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 9.95mm Exhaust: 9.95mm
Advertised Duration @ 0.10mm Intake: 272 Exhaust: 278
Duration @ 1.00mm VALVE LIFT Intake: 236 Exhaust: 240
Timing @ 1.00mm VALVE LIFT IVO: 8 BTDC EVO: 56 BBDC
    IVC: 48 ABDC EVC: 4 ATDC
Suggested Centre Lines:   Intake: 110 Exhaust: 116
VALVE Lift @ TDC Intake: 1.83mm Exhaust: 0.94


VVT-i

Engine Make: Engine Model: Part Number:
TOYOTA 1JZ TURBO 229-D
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.25mm Set COLD at the CAM

Cam Lift:   Intake: 10.20mm Exhaust: 10.20mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 9.95mm Exhaust: 9.95mm
Advertised Duration @ 0.10mm Intake: 272 Exhaust: 278
Duration @ 1.00mm VALVE LIFT Intake: 236 Exhaust: 240
Timing @ 1.00mm VALVE LIFT IVO: 8 BTDC EVO: 56 BBDC
    IVC: 48 ABDC EVC: 4 ATDC
Suggested Centre Lines:   Intake: 110 Exhaust: 116
VALVE Lift @ TDC Intake: 1.83mm Exhaust: 0.94
Products specifications
Engine Toyota 1JZ-GTE
Engine Type Non-VVTi
Product Type Valvetrain
