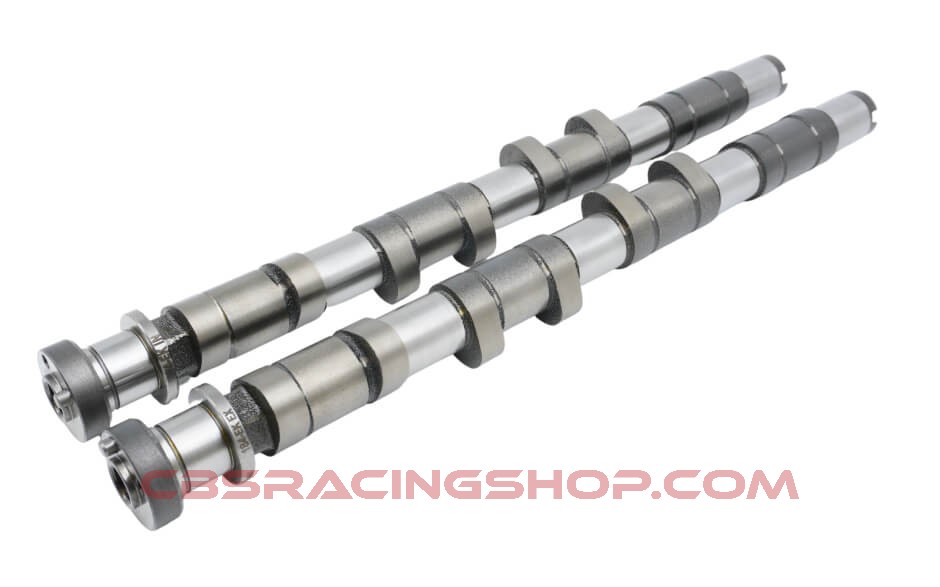

(184-EK) 318/308 Nissan SR16VE / 20VE Turbo Drag cams - Kelford Cams

Manufacturer: Kelford Camshafts
SKU: KC-184-EK
1130.76 EUR
Incl. 0% VAT (United States) | Change
1130.76 EUR excl. VAT

Nissan SR16VE / 20VE Turbo Drag cams

318°/308° | 13.00mm/11.80mm Valve Lift

Availability: Out of stock - If ordered, it will be shipped once available (1-2 weeks).
+ -

Nissan SR16VE / SR20VE Engine Camshafts

318°/308° | 13.00mm/11.80mm Valve Lift

Naturally aspirated track and drag racing cams to suit professionally built engines running on race fuel. Great with stroker kits and ITB intake. Ideal in a lightweight car with close ratio gears. Not for street cars. Cams will pull to around 10k+ rpm. Centre lobe removed, large lobe profile on outer lobes to allow for VVL system to be removed for less valvetrain mass.

Kelford Cams recommends KVS10-BT valve spring kit.

Engine Make: Engine Model: Part Number:
NISSAN SR16/20VE 184-EK
Valve Clearance: Intake: 0.25mm Set cold at the cam
  Exhaust: 0.25mm Set cold at the cam

Cam Lift:   Intake: 8.33mm Exhaust: 7.63mm
Rocker Ratio:   Intake: 1.6 Exhaust: 1.6
Nett Valve Lift:   Intake: 13.01mm Exhaust: 11.80mm
Advertised Duration @ 0.10mm Intake: 318 Exhaust: 312
Duration @ 1.00mm VALVE LIFT Intake: 274 Exhaust: 258
Timing @ 1.00mm VALVE LIFT IVO: 36 BTDC EVO: 47 BBDC
    IVC: 58 ABDC EVC: 31 ATDC
Suggested Centre Lines:   Intake: 101 Exhaust: 98
VALVE Lift @ TDC Intake: 5.05mm Exhaust: 4.52
