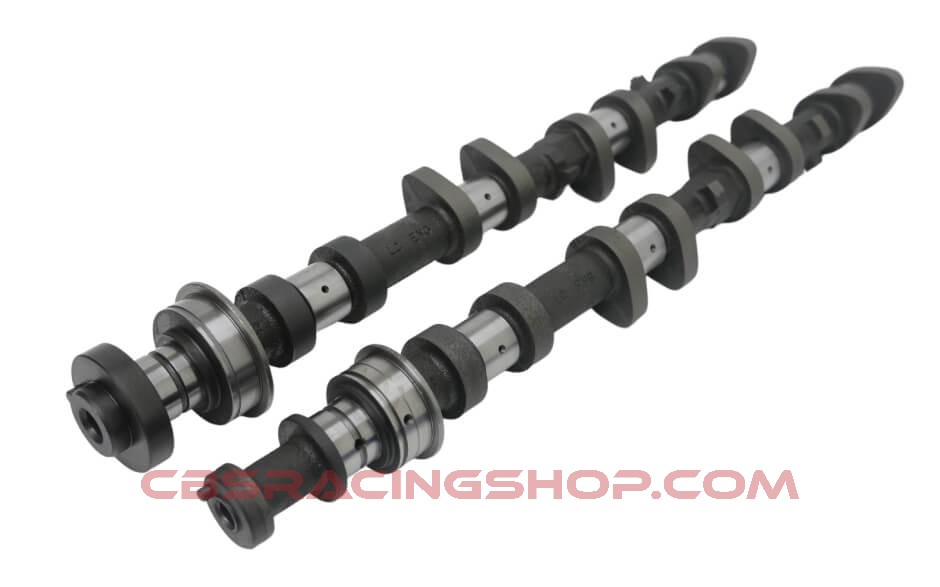

(180-A) TOYOTA 2RZ/3RZ TACOMA PERFORMANCE CAMS - Kelford Cams

Manufacturer: Kelford Camshafts
SKU: KC-180-A
1036.96 EUR
Incl. 0% VAT (United States) | Change
1036.96 EUR excl. VAT

Toyota Tacoma 2RZ / 3RZ Engine Camshafts

264°/272° | 9.65mm/9.65mm Valve Lift

Availability: Out of stock - If ordered, it will be shipped once available (1-2 weeks).
+ -

Toyota Tacoma 2RZ / 3RZ Engine Camshafts

264°/272° | 9.65mm/9.65mm Valve Lift

264°/272° Stage 1 performance cams for turbocharged 3RZ-FE engines. Suits 54mm-64mm turbo. Great for desert sand dune racing and off roading. Good throttle response and increased mid-range power. Still maintains street drivability.

  • Kelford Cams recommends valve spring KVS180-BT.
Engine Make: Engine Model: Part Number:
TOYOTA 2RZ-3RZ 180-A
Valve Clearance: Intake: 0.25mm Set cold at the cam
  Exhaust: 0.25mm Set cold at the cam

Cam Lift:   Intake: 9.90mm Exhaust: 9.90mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 9.65mm Exhaust: 9.65mm
Advertised Duration @ 0.10mm Intake: 264 Exhaust: 272
Duration @ 1.00mm VALVE LIFT Intake: 228 Exhaust: 232
Timing @ 1.00mm VALVE LIFT IVO: 7 BTDC EVO: 52 BBDC
    IVC: 41 ABDC EVC: 0 TDC
Suggested Centre Lines:   Intake: 107 Exhaust: 116
VALVE Lift @ TDC Intake: 1.73mm Exhaust: 0.94
