Engine overhaul - Gasket Kit for Toyota Supra and Toyota Aristo

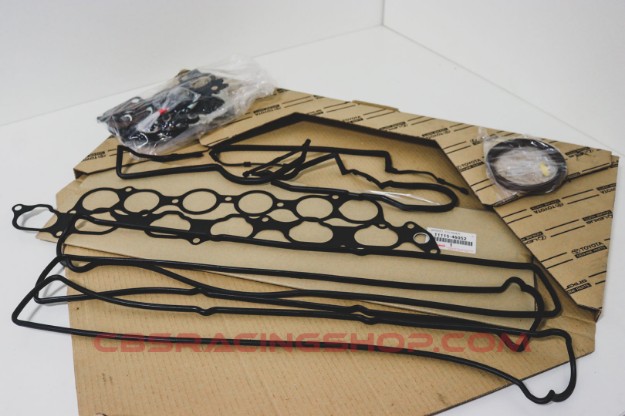

Engine overhaul - Gasket Kit "top and bottom kit" for Toyota Supra and Toyota Aristo
1993-2002 | TOYOTA SUPRA JZA801997-2004 | TOYOTA ARISTO JZS16
This OEM 2JZGTE Gasket Kit:This kit includes valve cover Gaskets for both vvti and NON vvti(this kit does not include all specific vvti engine gadgets, like vvti solenoid O ring and a few other things)
This OEM kit includes the following items:11115-46052 x 1 - Multi-Layer Steel (MLS) Head Gasket
11213-46020 x 1 - Valve Cover Gasket (Intake non-vvti)11213-46030 x 1 - Valve Cover Gasket (Intake vvti)11214-46011 x 1 - Valve Cover Gasket (Exhaust)90210-07001 x 16 - Valve Cover Washers / Grommets90913-02090 x 12 - Valve Stem Seals (Intake)90913-02088 x 12 - Valve Stem Seals (Exhaust)
23291-75010 x 12 - Injector Vibration Insulator90301-14006 x 6 - Injector O-Ring #190301-17007 x 6 - Injector O-Ring #2
90210-08033 x 4 - Washer to Front Bearing Caps90430-12028 x 1 - Oil Drain Plug Gasket90311-40020 x 2 - Cam Seals90311-90006 x 1 - Rear Main Seal90311-46001 x 1 - Front Crank Seal11329-46011 x 1 - Timing Cover Gasket96721-24022 x 1 - O-Ring for Oil Pump #196721-24031 x 1 - O-Ring for Oil Pump #215147-46010 x 1 - Oil Strainer Gasket90430-20016 x 1 - Washer for Oil Filter Bracket Bolt15472-46010 x 1 - Turbo Oil Outlet Gasket90430-12026 x 1 - Turbo Oil Pipe Union Bolt Gasket96721-19010 x 1 - O-Ring for Dipstick Tube
96761-24040 x 1 - O-Ring for Back of Water Pump96761-24023 x 2 - O-Ring for Short Water By-Pass Pipe16343-46030 x 1 - Water Outlet Housing Gasket16325-46010 x 1 - Water Inlet Housing Gasket16325-62010 x 1 - Thermostat Gasket
17173-46040 x 1 - Exhaust Gasket #117198-46010 x 1 - Exhaust Gasket #2
17177-46031 x 1 - Intake Manifold Gasket17176-46030 x 1 - Surge Tank Gasket
90430-12026 x 1 - Fuel Damper Gasket Pipe Side90430-14008 x 1 - Fuel Damper Gasket Damper Side
We want to make sure your Toyota performs at its best, that's why we recommend and sell Toyota Genuine Parts. Designed, tested and approved by Toyota, they ensure superior standards of quality, maintain residual value and most importantly keep your Toyota a Toyota.
Don't know what your part nr. is?
Select your vehicle and browse through the different parts here:
(If you have any issues or need help with this, please don't hesitate to contact us. We would be happy to assist you!)
