WG40ALV GenV Compgate 40 Black

The all-new addition to the Turbosmart line-up is the fresh air ALV40 (Anti-Lag Valve) for motorsport applications. Featuring a 40mm valve diameter and a purpose-designed actuator housing. Multiple fittings are also supplied for ease of fitment and fabrication.

The fresh air valve allows for incoming charged fresh air from the turbo to be diverted safely into the exhaust manifold pre-turbine wheel with the throttle at low opening angles to allow for safer spooling of the turbocharger without the potentially damaging throttle based late combustion event style anti-lag that can induce high engine stresses and break connecting rods.

The ALV is a sealed twin chamber design with the top port being the primary control port, the spring is designed to open under vacuum conditions to allow for the air to bypass into the exhaust manifold, the lower chamber for twin-port control methods, to control the valve irrespective of manifold pressure and shaft seal allows for leakproof operation.

Included in Box:

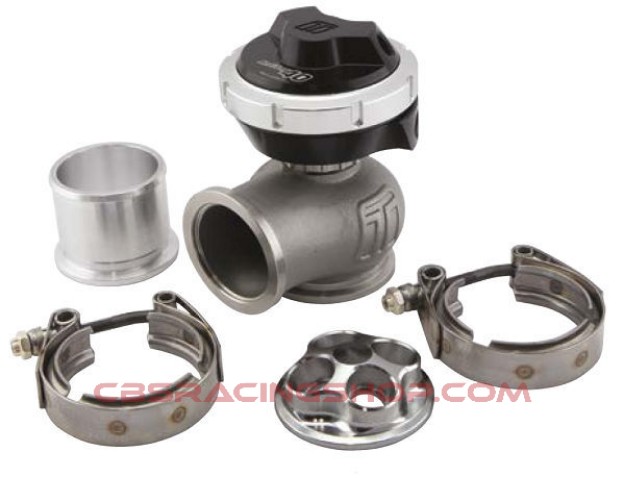

• Turbosmart Gen-V ALV
• Valve Seat
• Inlet V-band Clamp
• Inlet Hose Adapter 1-1/2' OD
• Outlet V-Band Clamp
• Inlet Weld Flange 1-1/2' OD
• Collar Tool
• Fitting Kit
• Inlet O-ring

Due to the variety of engine applications, an outlet weld flange is required to be purchased separately:

• 5 cylinder: TS-0550-3104 ALV 5-1 Weld Flange (5 outlets)
• 4 cylinder/V8: TS-0550-3098 ALV 4-1 Weld flange (4 outlets)
• 3 cylinder/6 cylinder: TS-0550-3099 ALV 3-1 Weld flange (3 outlets)
• 2 cylinder: TS-0550-3100 ALV 2-1 Weld flange (2 outlets)
• For custom outlet plenums, use Single Outlet to allow for the fabrication of your own solution: TS-0505-3101 ALV 1-1 Weld Flange (1 outlet)

A larger 1-3/4' OD inlet pipe adapter is also available: TS-0550-3102

• Each time these are installed, your customers will need a 4-port Solenoid: TS-0301-2003.
• These will take normal vacuum hose, but a reminder we also have 1/8NPT to An fitting in either -3AN TS-0550-3050 and -4AN TS-0550-3051 options.

SPARES:

• GenV ALV40 Valve Seat TS-0552-3001
• GenV Replacement V-Band Nuts TS-0550-3080
• GenV Inlet V-Band Clamp TS-0552-3003
• Gen-V Outlet V-Band Clamp TS-0552-3004

ACCESSORIES:

• ALV40 5-1 Weld Flange TS-0550-3104
• ALV40 4-1 Weld Flange TS-0550-3098
• ALV40 3-1 Weld Flange TS-0550-3099
• ALV40 2-1 Weld Flange TS-0550-3100
• ALV40 Inlet Weld Flange - Alloy TS-0550-3101
• ALV40 Inlet Pipe Adapter 1 3/4" (44.5mm) TS-0550-3102
• ALV40 Inlet Pipe Adapter 1-1/2" (38.1mm) TS-0550-3103
• GenV Position Sensor Cap (Upgrade) TS-0550-3062
• GenV Position Sensor (Replacement) TS-0550-3057
• 1/8NPT to 6mm Hose End Adaptor TS-0550-3008
• 1/8NPT to -3AN Male to Male Adaptor TS-0550-3050
• 1/8NPT to -4AN Male to Male Adaptor TS-0550-3051
• 1/8NPT 90º Poshloc Fitting - Hi-Temp (1/4") TS-0550-3054
• 1/8NPT T-Piece Pushloc Fitting - Hi-Temp (1/4") TS-0550-3055
• 1/8NPT Straight Pushloc Fitting - Hi-Temp (1/4") TS-0550-3053
• Hi-Temp Pushloc Tubing 1/4" Black (3 Metres) TS-0550-3056

TOOLS:

• C Spanner / Collar Tool TS-0550-3013
• GenV ALV40 Welding Purge Bung TS-0550-3076
• GenV ALV40 Diaghragm Replacement Tool TS-0550-3093
• Wastegate Press / Spring Change Assistance Kit TS-0550-3094
