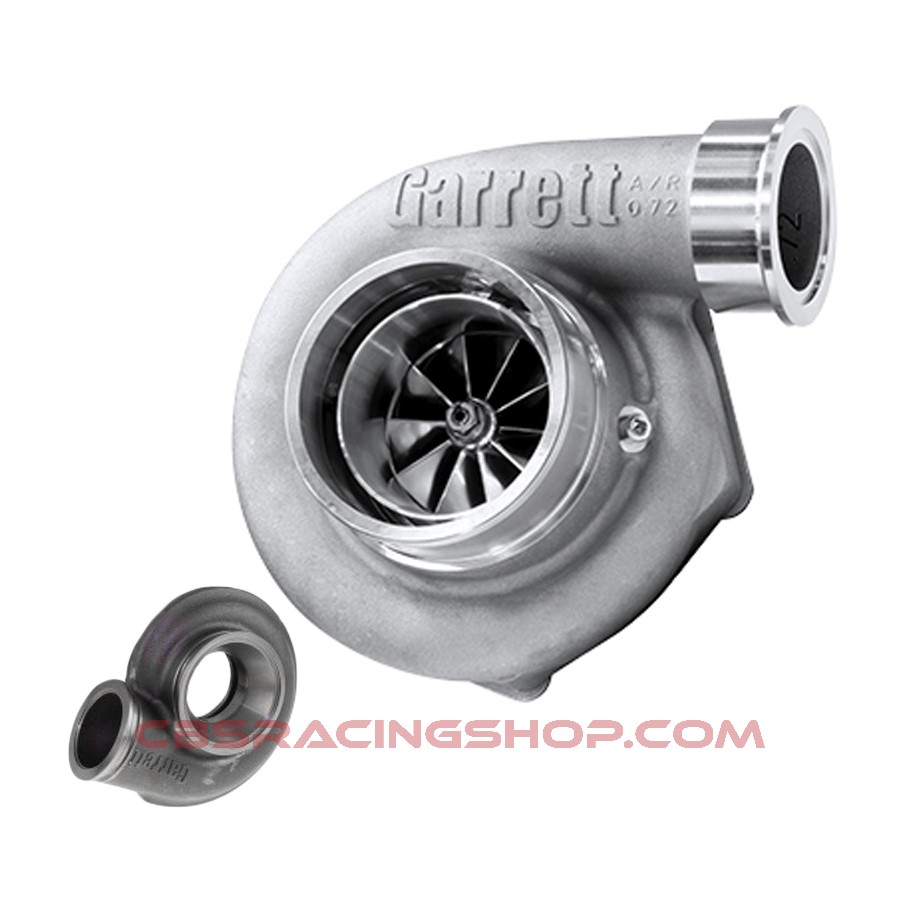

Garrett GTX3584RS Gen II Turbo 1.21 A/R - V-Band/V-Band - V-Band Compressor Housing Outlet - 856804-6
General Garrett GTX-R Gen II Turbocharger Description
The newest (second) generation of the GTX turbocharger by Garrett are similar to the first GTX series. Roughly the turbochargers come with ball bearing, flow improved compressor wheels and preparation for the accommodation of an optional speed sensor.
- An absolute innovation:
Many of the Gen II turbochargers are available as a reverse revolving turbochargers!
- Compressor wheel
All GTX compressor wheels are forged and billet out of special, high-strength aluminum alloys. Due to this manufacturing process the turbocharger receives a very high efficiency. The very even wheel geometry also reduces potential pulsation noises. You can also recognize this on the X in the turbocharger identification.
- Compressor housing
The new aero-optimized high-flow compressor housings are with integrated preparations for an optional speed sensor are tuned for the new GTX compressor wheels. The improved recirculation systems - compared to Gen I - broaden the operation range of the compressor substantially due to the relocation of the surge line.
- CHRA
All Garrett GTX are equipped with water cooling and the Gen 2 always comes with a dual ball bearing.
- Turbine wheel
The turbine wheels are made of inconel which withstands the highest exhaust temperatures.
- Turbine Housing
The turbine housing are available by your choice without wastegate, with wastegate, as single scroll and as twin scroll.
Custom Garrett Turbos
This offered turbocharger comes so directly from the manufacturer. With Garrett turbochargers, there are various options to adapt flange patterns and connections to the conditions of your vehicle. We are happy to assemble Garrett turbochargers with various turbine housings and compressor casings. Please contact us by phone, email or contact form.
