TK07H833FW - Stage 1 Organic Plus, Single Series - EXEDY

Leverandør: Exedy
SKU: TK07H833FW
Vær den første til at bedømme dette produkt
944.34 EUR
Incl. 0% VAT (United States) | Skift
944.34 EUR excl. VAT

TK07H833FW - Stage 1 Organic Plus, Single Series - EXEDY

Tilgængelighed: Udsolgt - Hvis bestilt, sendes det, når det er på lager (3-7 days).
+ -

Fitment:

Vehicle Brand: Vehicle Model: Vehicle Variant: From: Until: Engine code: Notes
Subaru BRZ   2012 2019 FA20 2.0L - RWD Petrol
Toyota GT 86   2012 2019 4U-GSE 2.0L - RWD Petrol



Specifications

Outer Diameter (mm): 230
Disc Facing: Organic
Push/Pull Type: PUSH
Sprung Centre Disc?: Yes
Torque @ Flywheel: 190 lb.ft./250 Nm
Torque @ Wheels: 160 lb.ft./200 Nm
Clamp Load (N): 6000
No. of Paddles: Disc Type
Additional Information: With bearing(s), Four Piece

Precision, strength and incomparable quality.

Designed for lightly modified vehicles, the Stage 1 Organic clutch incorporates friction material with high heat-resistance properties and high strength fibres making it an ideal clutch for road, circuit or drifting.

Main Benefits
Ensures the clutch engagement feeling is the same as the standard clutch.
Up to a 30% increase in torque capacity over standard.
Approximately 40% higher clamp load than the standard clutch.
Industry leading performance friction, achieving the highest fade recovery, the highest RPM burst test results, the best heat resistance and the lowest wear rate in the performance aftermarket.

Suitable For
Road
Track Day
Circuit Racing
Drifting

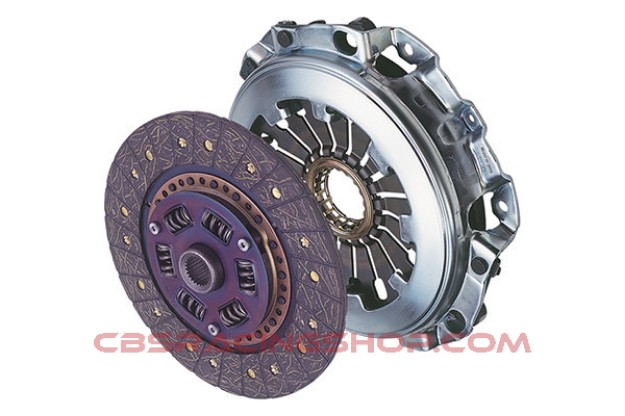

An EXEDY Racing Clutch Stage 1 Organic Plus clutch kit comes with a clutch cover, clutch disc, bearing and Single Series Flywheel.

Single Series Flywheels complement the clutch by further reducing inertia and improving the cooling properties of the clutch.




Clutch Cover
Single Series clutch covers are designed to achieve a clamping load that is approximately 40% higher than the genuine part enabling a higher torque capacity. Ductile material is used for all pressure plates and high burst strength can be achieved in all temperature ranges. Note: Single Series Clutch Kits with HD in the middle of a kit reference denote that the cover has a higher clamp load. e.g. Mitsubishi EVO Organic kit: MK04HD601

Clutch Disc
An ultra fibre friction facing is used which has high heat resistance and high burst strength characteristics. No steel back is required which can cause RPM "lock-out" and/or synchro damage. Superior in shift operations and half-engagement feel, this clutch disc is recommended for any motorsport or modified vehicle use.

The performance of a standard organic friction material usually suffers after slipping. Accordingly, EXEDY has developed the ultra fibre material. If fade is experienced it will recover after a short cooling down period.

Note: There are two variations of Organic kits for some models. For example, the Organic kit FK01H601 for the Subaru Impreza has a 6 spring disc and the kit FK01H1601 has a 4 spring disc. The 6 spring disc is best suited for track day or motorsport use, whereas the 4 spring disc is ideal for everyday driving as it delivers a smooth engagement and disengagement experience.

Clutch Type Friction Facing Disc Diameter Disc Damper Rattle Noise When Disengaged Typical Usage Engine Torque Acceleration Response Shift Response Speed Engagement Feeling Pedal Effort
[Weight]		 Advantages
10 = High
5 = Genuine
1 = Low		 10 = Good
5 = Genuine
1 = Dull		 10 = Good
5 = Genuine
1 = Bad		 10 = Genuine
1 = Difficult		 10 = Genuine
1 = Heavy

Stage 1 Organic

Single Plate		 Organic Same as Genuine Yes No Vehicle Type: All Types
Usage: Street / Track Day		 6 5 5 9 8 - Ensures the clutch engagement feeling is the same as the standard clutch.
- The organic friction facing maintains heat resistance whilst allowing up to a 30% increase in torque capacity over standard.
- Approximately 40% higher clamp load than the standard clutch.
 SINGLE SERIES
Stage 2 Sports

Single Plate		 Cerametallic Same as Genuine Yes No Vehicle Type: All Types
Usage: Circuit / Drift / Drag / Rally.		 7 5 6 7 6 - A reduction of 10% inertia over the original equipment part increases the shift feeling.
- The cerametallic friction facing maintains heat resistance whilst allowing up to a 40% increase in torque capacity over standard.
- Approximately 40% higher clamp load than the standard clutch.
Stage 2 Racing

Single Plate		 Cerametallic Same as Genuine Yes No Vehicle Type: Lightly modified circuit Vehicle Type (e.g. Civic).
Usage: Track day / Competition Racing.		 7 5 7 6 6 - A reduction of 30% inertia over the original equipment part increases the shift feeling.
- The cerametallic friction facing maintains heat resistance whilst allowing up to a 40% increase in torque capacity over standard.
- Approximately 40% higher clamp load than the standard clutch.
Stage 2 Rally

Single Plate		 Cerametallic Same as Genuine Yes No Vehicle Type: Rally Vehicle Type with high torque capacity.
Usage: Group N Rally.		 8 5 6 7 6 - Specifically designed for Group N Rally.
- Can handle up to 630Nm at the flywheel.
- Approximately 40% higher clamp load than the standard clutch.
 HYPER SERIES
Hyper Single

Single Plate		 Cerametallic 200mm / 225mm Yes No Vehicle Type: Modofied NA / Turbo engine.
(e.g. Civic / S2000 / Silvia / Impreza)
Usage: Circuit / Drift / Drag		 8 7 7 7 7 - Quick acceleration response due to low inertia created from the lightweight design.
Hyper Single VF (Various Friction)

Single Plate		 Cerametallic / Organic 200mm / 225mm Yes No Vehicle Type: Modified NA / Turbo engine.
(e.g. Civic / S2000 / Silvia / Impreza)
Usage: Street & Track Day		 8 7 6 10 9 - Capable of handling a high torque capacity without sacrificing the feel of a standard clutch.
- Combination of cerametallic & organic friction facings allows for high heat durability.
- Unique cushioning plate design reduces pedaling power by 12%.
Hyper Multi Twin

Twin Plate		 Cerametallic 200mm Yes Yes Vehicle Type: Highly tuned performance engines.

(e.g. Supra / EVO / Impreza / Skyline).
Usage: Street / Circuit / Drift / Drag.		 9 8 6 7 8 - High torque capacity.
- Self leveling intermediate plate design reduces gearbox rattle and increases the disengagement performance (PAT.).
- Unique intermediate plate design increases heat resistance which improves clutch life.
Hyper Multi Triple

Triple Plate		 Cerametallic 200mm No Yes Vehicle Type: Heavily tuned performance engines
(e.g. Supra / EVO / Impreza / Skyline).
Usage: Drag Racing / Drifting.		 10 7 4 5 8 - Capable of handling the highest torque capacities associated with motorsports.
Compe - R Cerametallic 200mm No Yes Vehicle Type: Competition Vehicle Types
(e.g. EVO / Impreza / RX7)
Usage: Circuit.		 9 10 8 6 7 - Lightweight flywheel allows for quicker acceleration response due to lower inertia.
- High Torque Capacity.
Compe - D Cerametallic 200mm Yes Yes Vehicle Type: Competition Vehicle Types
(e.g. EVO / Impreza / RX7)
Usage: Drift / circuit / Gymkhana.		 9 10 7 6 7 - Lightweight flywheel allows for quicker acceleration response due to lower inertia.
- Absorbs additional gearbox rattle and shock torque compared to Compe-R.
Carbon - D

Single Plate		 Carbon 202mm / 225mm Yes No Vehicle Type: High-performance NA engine
(e.g. s2000 / Integra / RX8).
Usage: Street / Circuit.		 6 7 9 10 9 - Carbon clutches offer excellent operational feel by reducing inertia.
- Unique damper design significantly reduces shock torque and gearbox rattle.
- The highest possible performance with the same ease of use as the original equipment clutch.
- Added SX coating to the pressure plate and intermediate plate further increases stability and torque capacity.
Carbon - D

Twin Plate		 Carbon 225mm Yes Yes Vehicle Type: High-performance turbo engine
(e.g. EVO / Impreza / Skyline / Supra)
Usage: Street / Circuit		 9 7 8 10 9
Carbon - R

Single Plate		 Carbon 202mm / 225mm No No Vehicle Type: High-performance NA engine
(e.g. s2000 / Integra / RX8).
Usage: Street / Circuit.		 6 8 10 9 7 - Rigid type center hub design gives the Carbon-R the ultimate shift response.
- Lightweight flywheel and hub design significantly reduces inertia, giving excellent acceleration response.
- Added SX coating to the Pressure plate and Intermediate plate further increases stability and torque capacity.
Carbon - R

Twin Plate		 Carbon 202mm No Yes Vehicle Type: High-performance turbo engine
(e.g. EVO / Impreza / Skyline / Supra)
Usage: Street / Circuit		 8 10 10 9 7
Carbon - R

Triple Plate		 Carbon 202mm No Yes Vehicle Type: High-performance turbo engine
(e.g. EVO / Impreza / Skyline / Supra)
Usage: Street / Circuit		 10 9 9 9 7
Produkt specifikationer
Engine Toyota 4U-GSE, Subaru FA20D
Gearbox Toyota J160
Product Type Exedy
Make Subaru, Toyota
Model BRZ, GT86
Disc Facing / Material Organic
Centre Disc Sprung
Power Rating @ Flywheel /Nm 250 Nm
