Fuel Rail, VW 2.8L 12V VR6
COMPATIBILITY
91-95 VW Corrado
91-00 VW Passat
91-03 VW Golf GTI
92-02 VW Jetta
NOTES:
1. Compatible with late model (plastic) upper and lower intake manifolds.
2. Compatible with early model (aluminum) lower intake manifold.
3. Not compatible with early model (aluminum) upper intake manifold.
FUEL RAIL
Provided are 2 different fuel rail mounts depending on the lower intake manifold.
Shown below is the early model engine which uses an aluminum lower intake manifold. It requires the long fuel rail mounts included in the kit.
Shown below is the late model engine which uses a polymer lower intake manifold. It requires the short fuel rail mounts included in the kit.
NOTE: with late model lower intake manifolds, a Radium Engineering fuel pulse damper can be used in the center port.
As shown below, this fuel rail is compatible with the OEM late model upper intake manifold when using OEM equivalent fuel injectors.
INJECTORS
Like the OEM fuel rails, the injector bores are 14mm ID so factory injectors (or any equivalent aftermarket injector) can be used.
As shown above, the factory injector retaining clips can be reused.
FEATURES
-Lightweight aluminum construction
-Inner bore diameter: 0.7 inch
-Anodized surface finish for wear and corrosion resistance
-No special tools required for installation

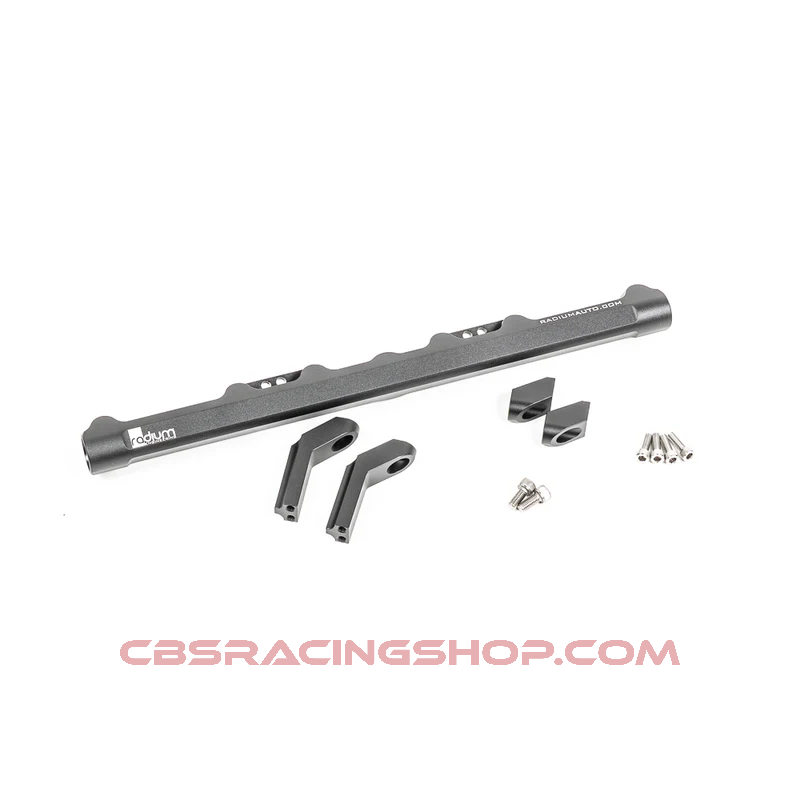

INCLUDES
1x 2.8L 12V VR6 Fuel Rail
2x Early Model Fuel Rail Mount
2x Late Model Fuel Rail Mount
2x Stainless Screws, M6x1mm
4x Stainless Screws, M5x.8mm
