Toyota 1FZFE Stroker Kit - 101mm Stroke LightWeight Crank/Pro Rods (I-Beam 7/16" fasteners)

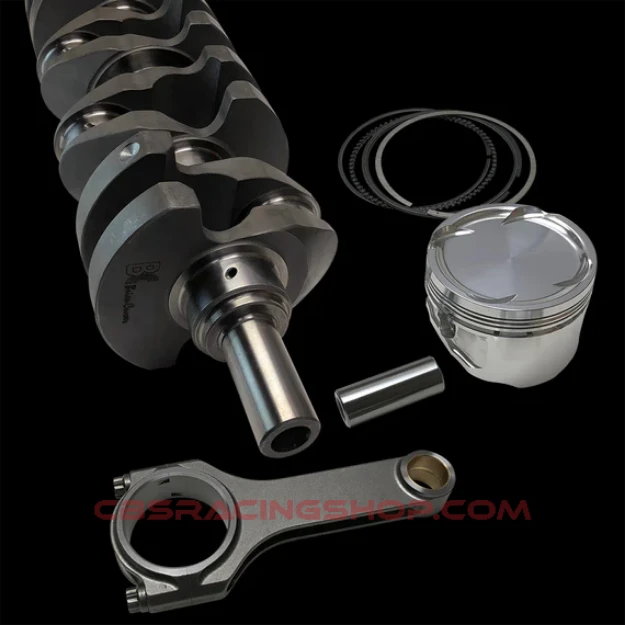

5.0L - Includes 4340 billet LightWeight crank, 101mm stroke, I-Beam ProHD rods (6.062" c-to-c w/7/16" bolts), and custom pistons (choice of bore/compression). ACL Race bearings available separately.

• Note: ACL Race Series Bearings are NOT included in this kit.
• Note: LightWeight billet crankshafts also available in 108mm stroke. Specify BC5355LW-108

1FZFE STROKER KITS
The BC stroker kit for the Toyota LandCruiser 1FZFE engine platform incorporates a 101mm stroke, steel billet crank, BC 4340 Pro Series connecting rods rated to 1600+ horsepower. Depending on bore size that you decide, the BC kit will take you up to a 5.0L with 101mm bore. As usual, each BC kit features custom CP/JE aluminum forged pistons, 9310 alloy wrist pins, ring pack and buttons. Available in any desired bore and compression ratio for use in turbo or normally aspirated. Crank strokes also available up to 105mm on a special order basis.

• BC 4340 forged steel crankshaft (101mm stroke).
• BC 4340 I-Beam Pro Series connecting rods w/ARP 220,000 psi fasteners.
• CP or JE aluminum forged pistons (any bore size, any compression ratio).
• 9310 Series upgraded wrist pins standard.
• Ductile iron plasma top rings, tapered second ring, low tension oil rings.
• Fully system balanced and ready to install. (50% deposit required)
