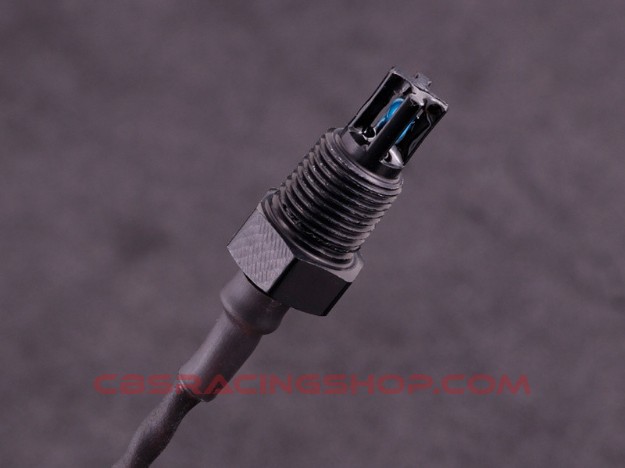

Intake temperature sensor (IAT) HV 1/8 NPT
Air Temperature Sensor which uses a high temperature, fast responding NTC thermistor. The thermistor body is coated with a blue insulating lacquer.
A high accuracy, fast response NTC thermistor was used to measure air charge temperature. Measurement range -40 DegC to +150 DegC, exceptional thermal shock performance, 1/8NPT thread, sealed 2-way Deutsch connector.
- High Temperature, high accuracy NTC thermistor.
- Temperature Range: -40 DegC to 150 DegC.
- High accuracy over a wide temperature range.
- Exceptional thermal shock performance.
- Compact Design.
- 1/8 NPT Thread.
- DTM sealed 2- way connector.
- Fully potted for a waterproof seal.
-40 deg C = 48085ohm
+150 deg C = 52.661ohm.
